Description
- MESMERIZE private and unique tooling design
- Selectable Power: 18W / 23W / 33W via DIP switch
- Selectable CCT: 4000K / 5000K / 6500K via DIP switch
- Smalite SMD2835 LEDs, up to 120+ lm/W @5000K
- UGR <16 anti-glare grille reflector design for visual comfort
- MESMERIZE external isolated driver, flicker-free, EMC passed
- PF >0.9, surge protection: L–N 1.5kV (IEC/EN61000-4-5)
- SPCC housing with excellent heat dissipation
- Optional: Triac / DALI dimmable driver and emergency battery backup

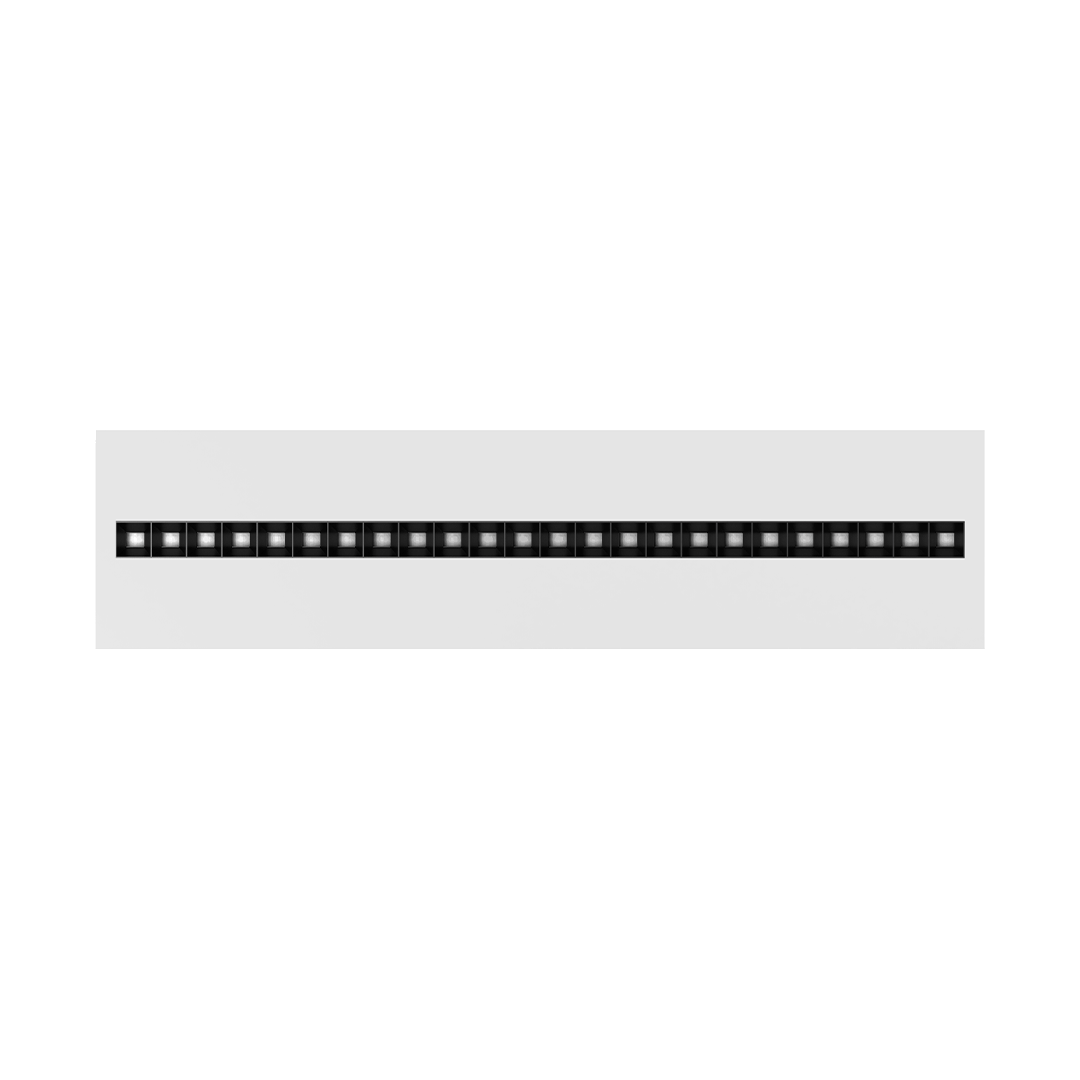

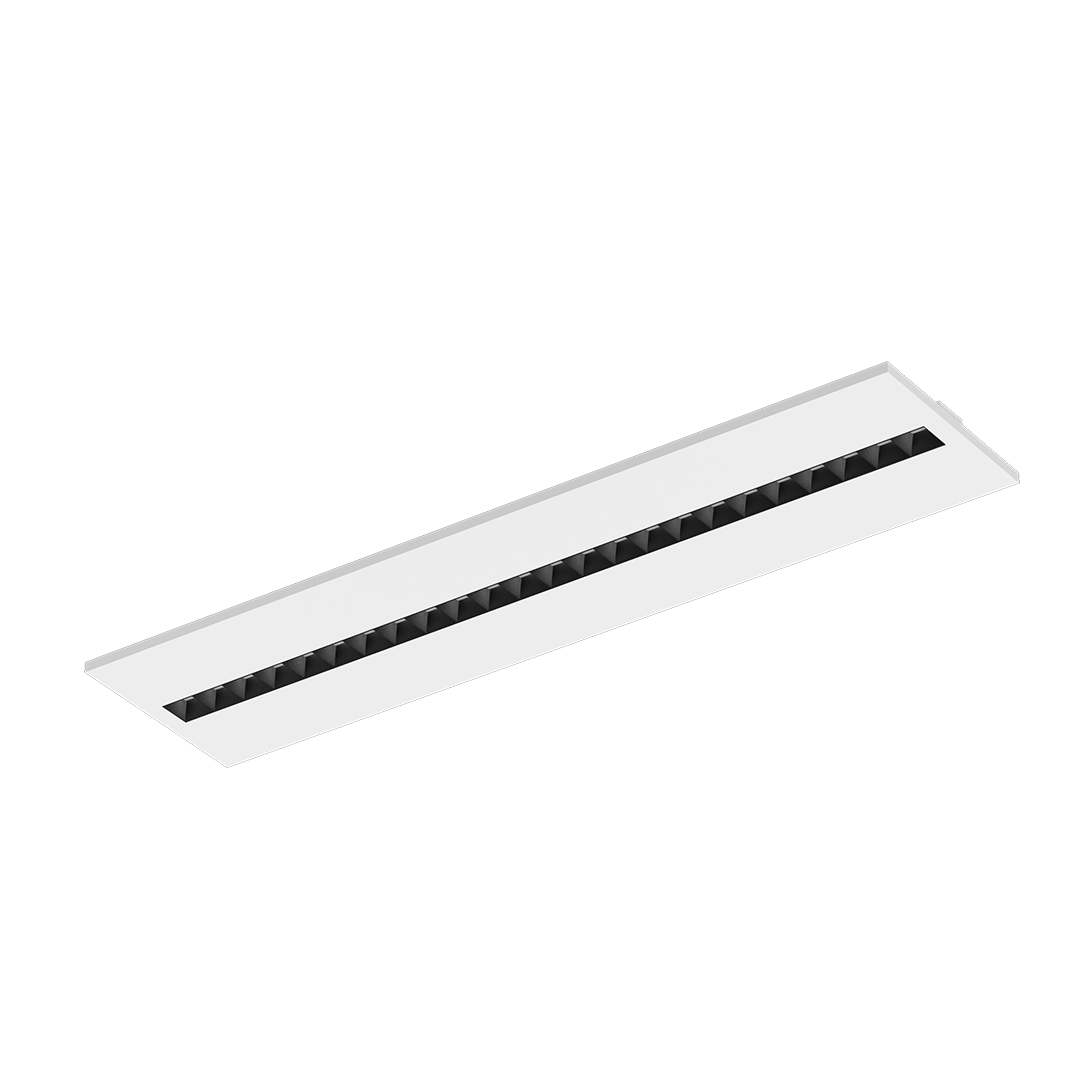

- Optional housing and reflector: Matte White / Black
- Mounting options: Surface-mounted or suspended
- CRI >80, beam angle: 65° (0.5 Imax)
- Input voltage: 170–264Vac | 50/60 Hz
- Operating temperature: –20 °C ~ +45 °C
- Protection class: Class II | IP40 | IK06
- Lifespan: 50,000 hours | Warranty: 5 Years
- Main materials: SPCC / Polycarbonate
- Certifications: IEC / LOA / CE / RoHS
- Dimensions: 1195 × 295 × 30 mm
Additional information
| Dimensions | 1195 × 295 × 30 cm |
|---|---|
| Wattage | 33W+23W+18W |
| LEDs | Lumileds 2835 / Samsung 4014 |
| Effective Lumen | 5100lm +/-10 |
| Colour Rendering Index | >80 |
| Colour Temperature | 4000k/5000k/6500k |
| Power Factor | 0.95PF |
| Input Voltage | AC180~277VAC |
| Surge Protection | 1.5kV |
| Frequency | 50/60HZ |
| Lifespan | 50,000 Hours |
| Impact Rating | IK06 |
| Ingress Protection | IP40 |
| Certifications | CE, IEC, ROHS, LOA |
