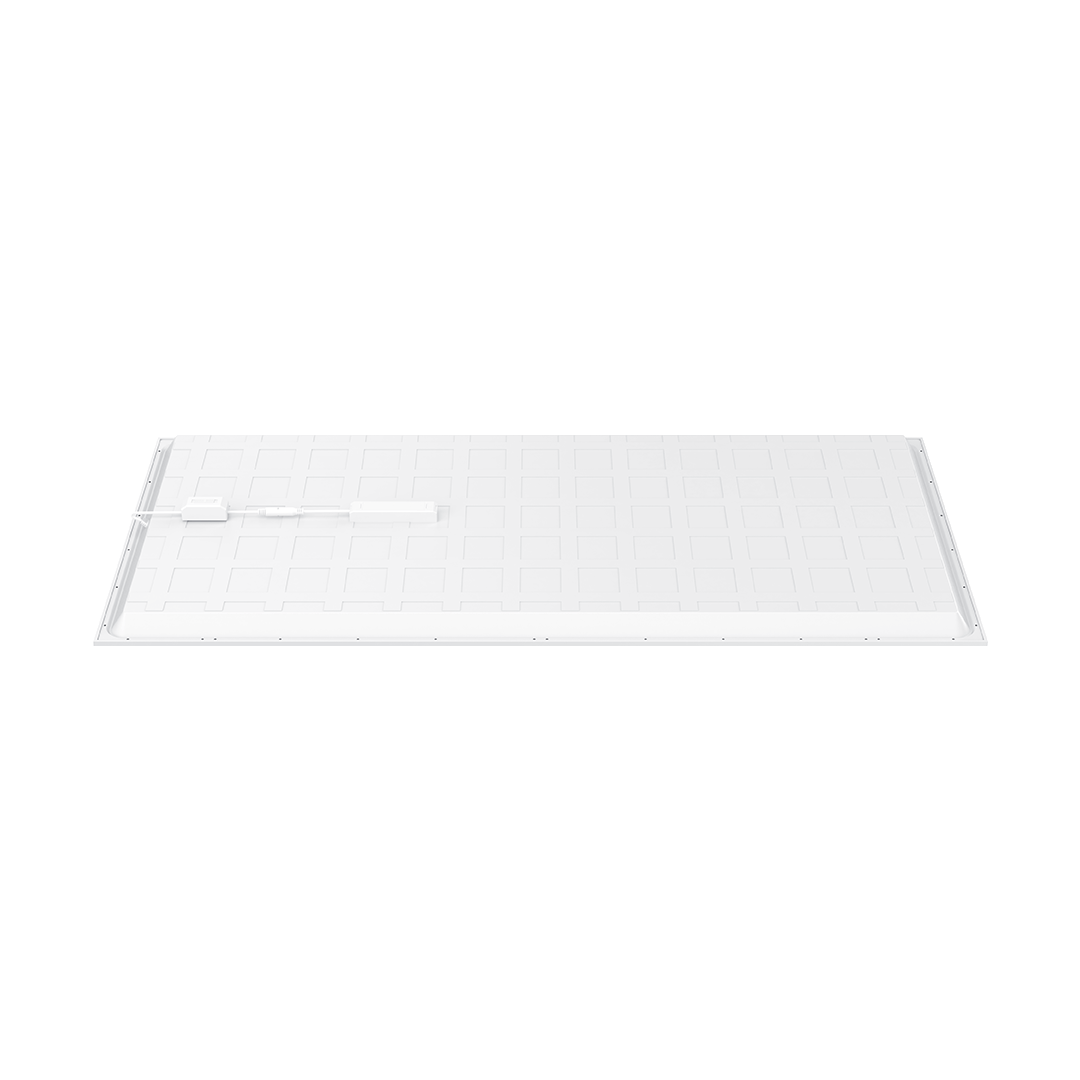

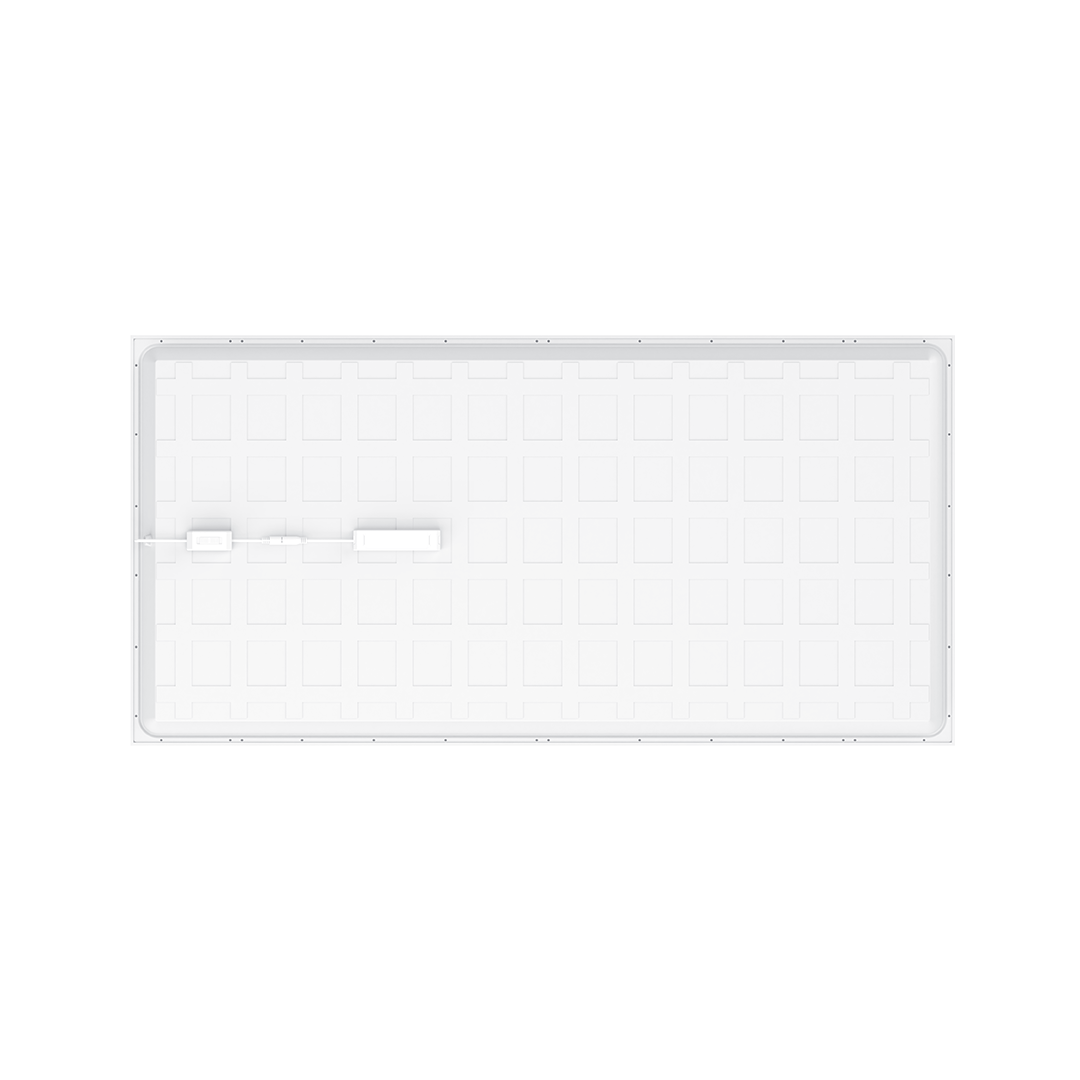

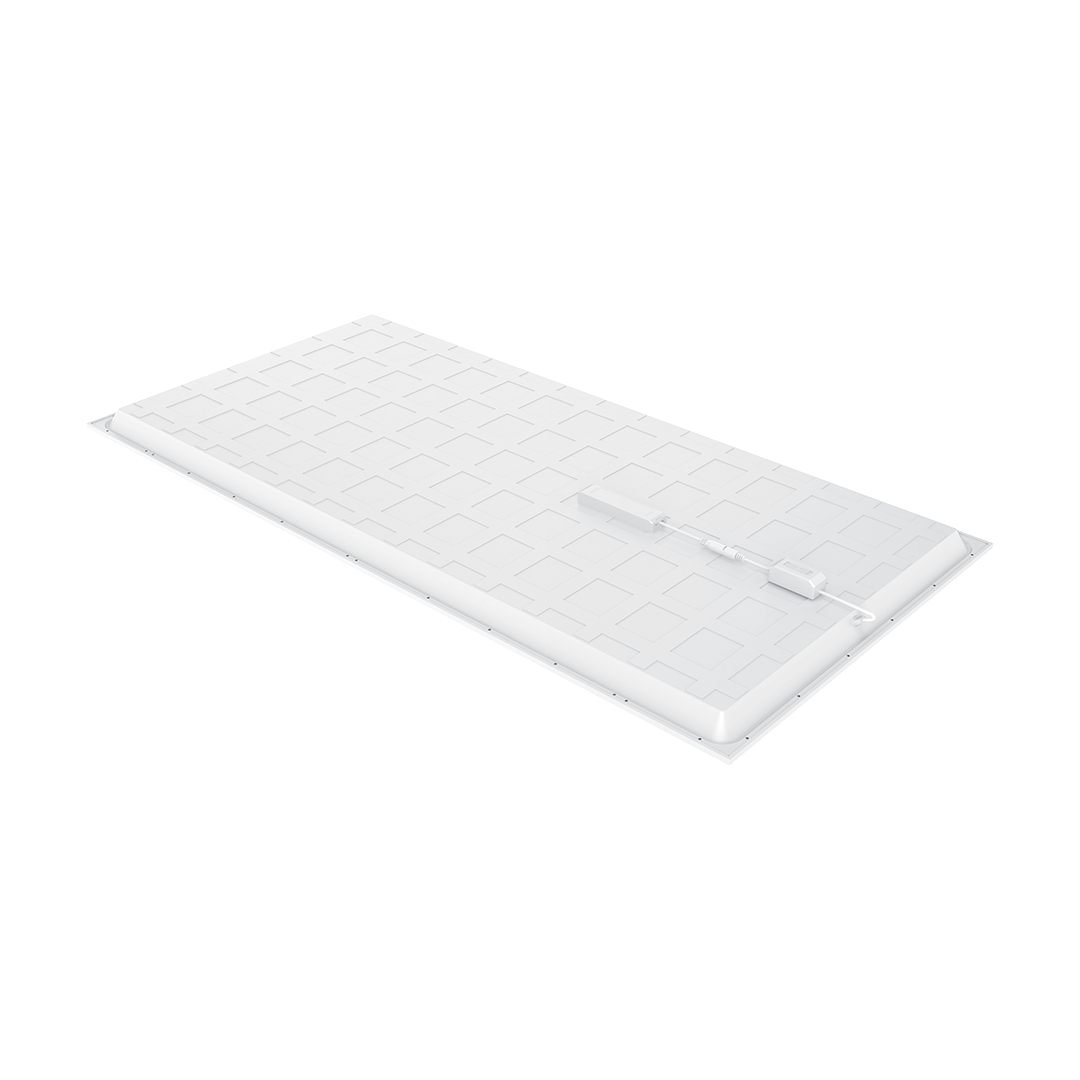

Mantra Pro LED Backlit Panel 1200×600
The Mesmerize Mantra Pro 51W CCT LED Backlit Panel 1200 × 600 is a high-output commercial-grade ceiling panel built for large open-plan spaces. With innovative backlit technology, selectable CCT (4500K / 5000K / 6500K), a powerful 7,200 lumen output, RA>85 colour rendering, low UGR<22 glare, and a flicker-free EMC-passed design, it delivers premium illumination across offices, retail floors, hospitals, and conference rooms – backed by a 5-year warranty.
Description
- High-output 51W with 7,200 lumens: Powerful, even illumination for large open-plan offices, retail floors, and commercial spaces

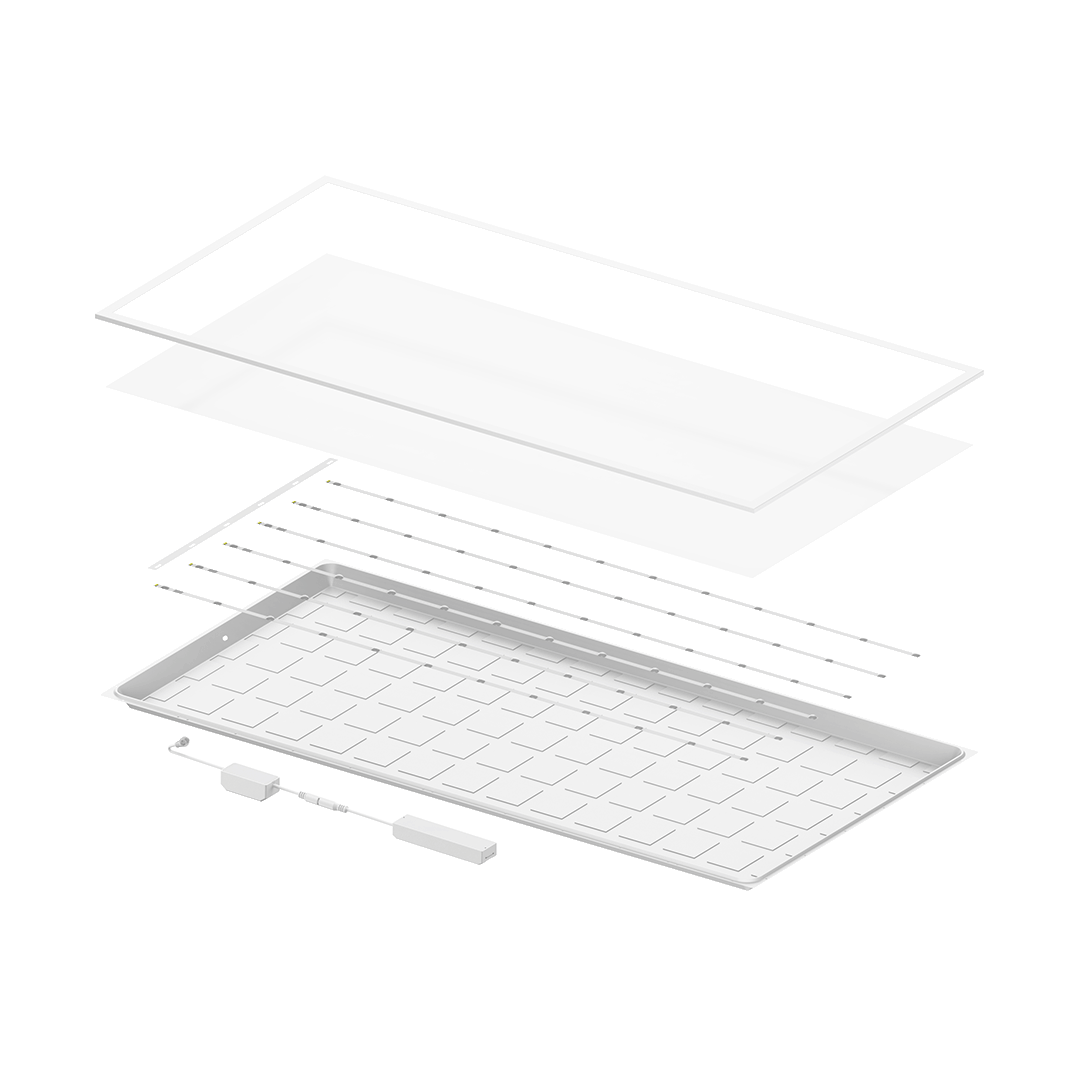

- Innovative backlit technology: Eliminates the yellowing of dark spots that affect traditional edge-lit panels – consistent, even light across the entire surface
- Large 1200 × 600mm format: Fits standard large-grid ceiling systems and delivers broad coverage from each fitting
- 3CCT selectable: Switch between 4500K (warm-cool), 5000K (daylight), and 6500K (cool white) to match the space and task
- High RA > 85 colour rendering: Excellent colour accuracy for retail displays, hospitals, offices, and any environment where true-to-life colour matters
- Low glare UGR < 22: Visually comfortable during long working hours – protects eye health in demanding environments
- Flicker free and EMC passed: Eye-strain-free output with clean electrical operation for sensitive settings like hospitals and labs
- SMD2835 LEDs: Premium chips with proven reliability and high efficiency
- 110° beam angle: Wide, even light spread for full room coverage from any mounting height
- Wide input voltage: AC 170-264V at 50/60Hz for global compatibility and resilience to voltage fluctuations
- 2kV surge protection: Defence against electrical spikes for safer long-term operation
- Power factor of 0.9: Efficient power use with minimal electrical loss
- External isolated driver: Reliable and easy to access for service and replacement
- Dimmable: Compatible with dimming systems for ambient control (driver-dependent)
- Battery backup available: Optional emergency lighting backup at additional cost – ideal for commercial buildings requiring backup illumination
- Surface mount & suspension kits available: Versatile installation for recessed grids, solid ceilings, and feature pendant runs
- Iron backplate with aluminium housing: Strong, durable construction with excellent heat dissipation
- Slim 32mm profile: Sits flush in standard ceiling grids without bulky protrusion
- 55,000-hour lifespan: L80B20 rated for over a decade of reliable commercial use
- Fully certified: IEC / CE / RoHS / SAA / ErP compliant
- 5-year warranty
- Note: Continuous 24/7 operation will reduce LED lifespan – best suited to standard business-hours use

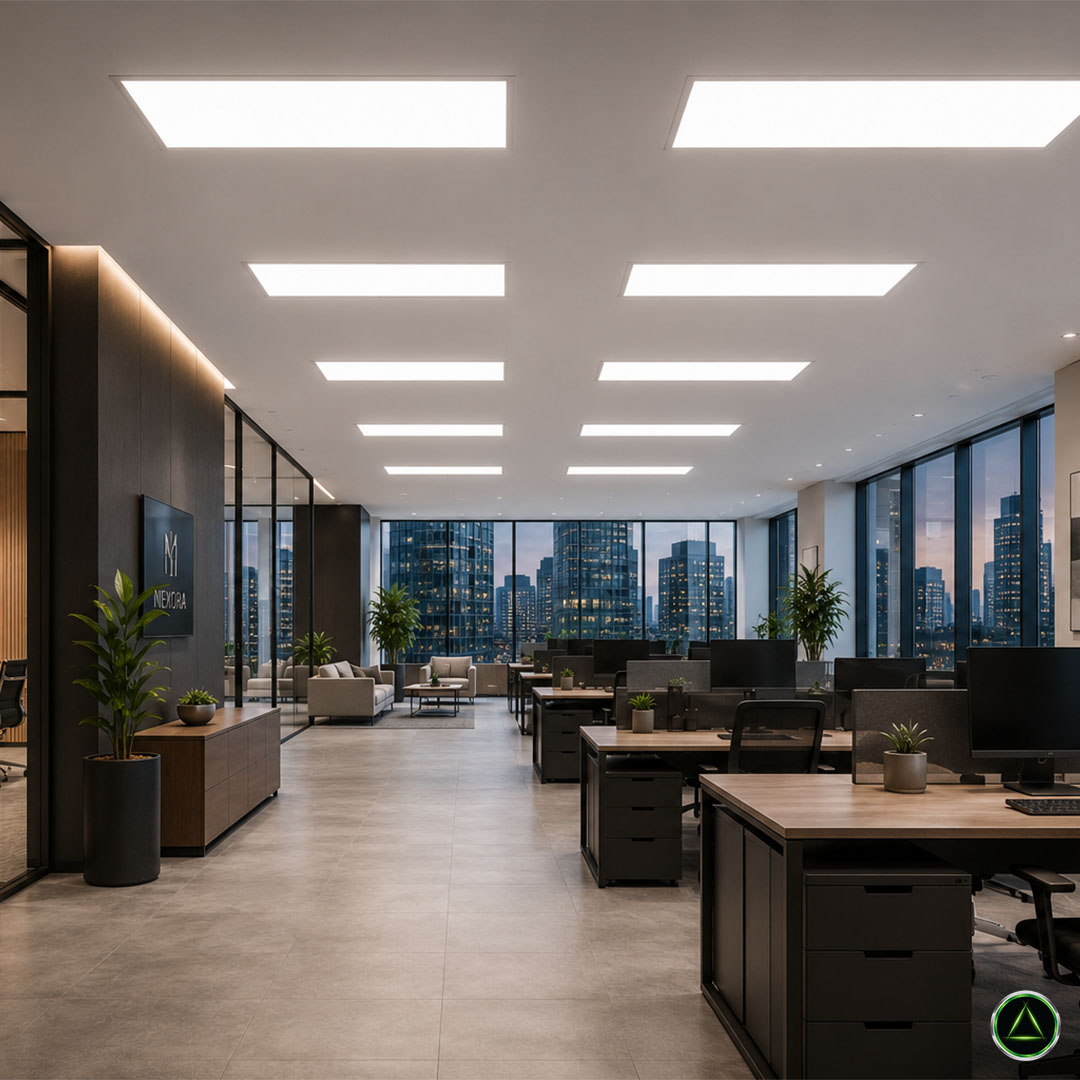

- Versatile applications: Large offices, retail floors, hospitals, conference rooms, classrooms, hotel lobbies, restaurants, and commercial buildings
Additional information
| LEDs | SMD 2835 |
|---|---|
| Colour Temperature | 4500K / 5000K / 6500K (Selectable) |
| Effective Lumen | 7200 |
| Colour Rendering Index | >85 |
| Unified Glare Rating | <22 |
| Wattage | 51W |
| Beam Angle | 110° |
| Power Factor | 0.9PF |
| Operating Temperature | -10°C ~ 40°C |
| Input Voltage | AC170 ~ 264V |
| Surge Protection | 2kV |
| Dimmable | Yes (Available) |
| Flicker Free | Yes (EMC Passed) |
| Battery Backup | Available (optional, additional cost) |
| Ingress Protection | IP40 |
| Dimension | 1195mm (L) 595mm (W) 32mm (H) |
| Lifespan | 55,000 Hours |
| Warranty | 5 Years |
| Certifications | CE, IEC, ROHS, SAA, ErP |
