Description

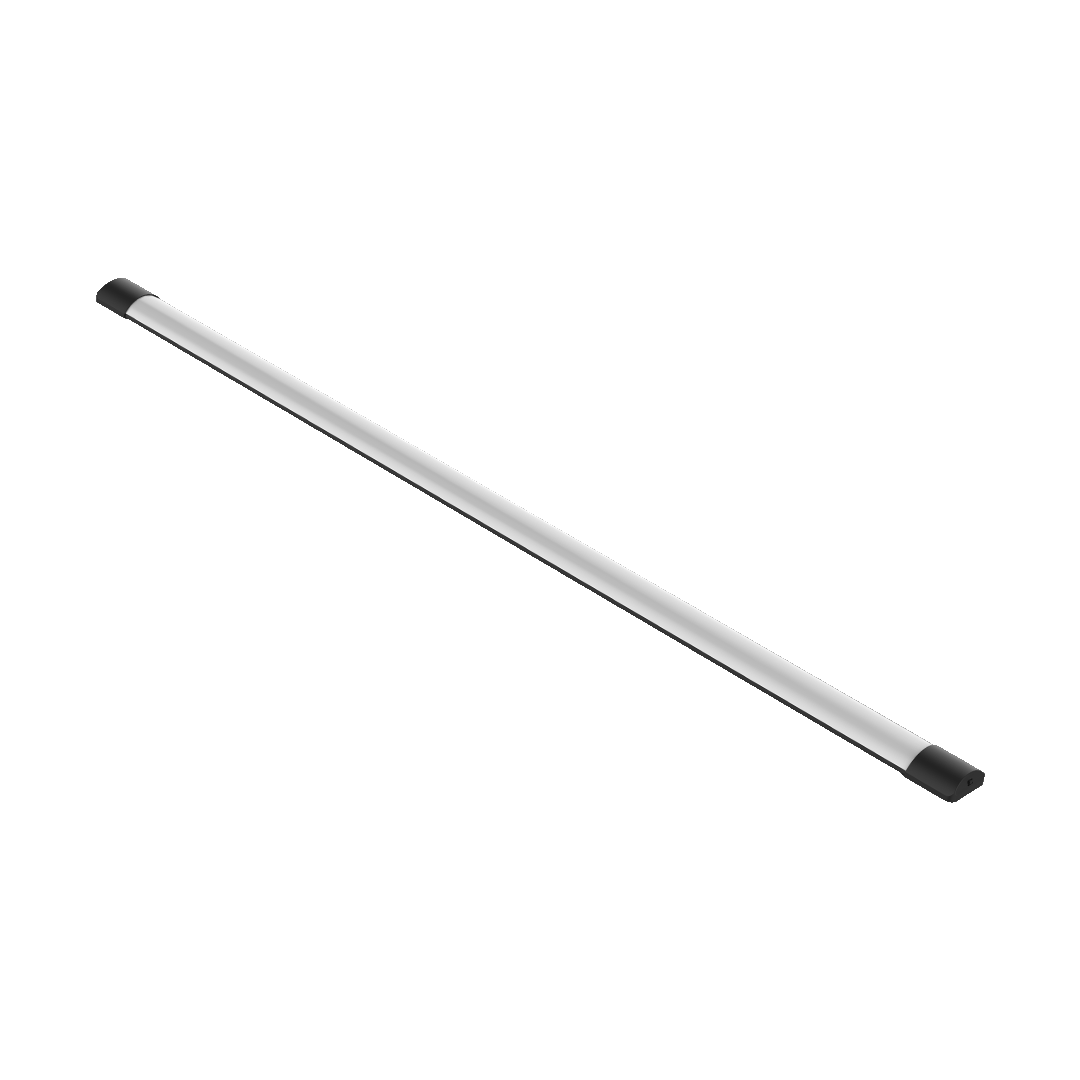

- Design: Slimline aluminium and polycarbonate housing in black or white finishes
- Selectable Settings: 3-in-1 CCT (3000K / 4000K / 6500K) adjustable via dip switch
- LEDs: PUSISAT SMD2835 LED chips with efficiency up to 120 lm/W (white) and 105 lm/W (black)
- Driver: Mesmerize flicker-free driver, EMC approved, wide voltage (198–264 Vac)
- Performance: 5760 lm (white) / 5040 lm (black), CRI > 80, beam angle 120°
- Protection: Surge protection 1000 V, power factor 0.90 PF
- Durability: IP33 rated, operating range -20 °C to +40 °C
- Certifications: IEC60598-1&2-1, LOA, CE, RoHS, CISPR 15/EMC approved
- Lifespan: 25 000 hours (LED life 49 000–62 000 h @L90)
- Warranty: 3 Years
- Dimensions: 1500 × 71 × 27 mm
- Applications: Warehouses, retail, and large interior spaces requiring bright linear lighting
Additional information
| Dimensions | N/A |
|---|---|
| Available Colors | Black, White |
| Wattage | 48W |
| Effective Lumen | 5040lm ±5, 5760lm ±5 |
| Colour Temperature | 3000K / 4000K / 6500K, CCT 3-in-1 adjusted by dip-switch |
| Colour Rendering Index | >80 |
| Beam Angle | 120° |
| Surge Protection | 1kV |
| Input Voltage | AC198~264V |
| Power Factor | 0.90 PF |
| Flicker Free | Flicker Free |
| Dimmable | No |
| Ingress Protection | IP33 |
| Warranty | 3 Year Warranty |
| Lifespan | 25000 Hours |
| Battery Backup | Available on request |
| Material | Aluminium Internal / Polycarbonate External |
| Dimension | 1500*71*27mm |
