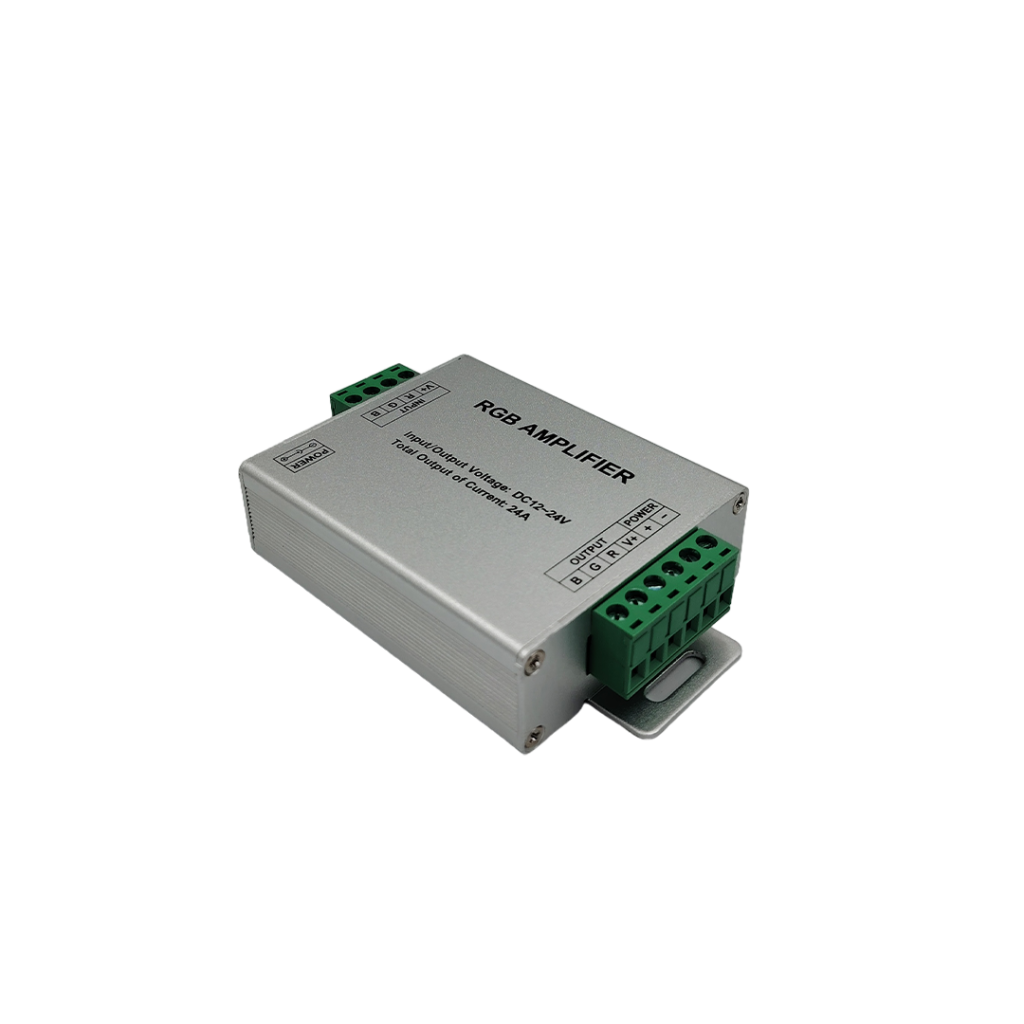

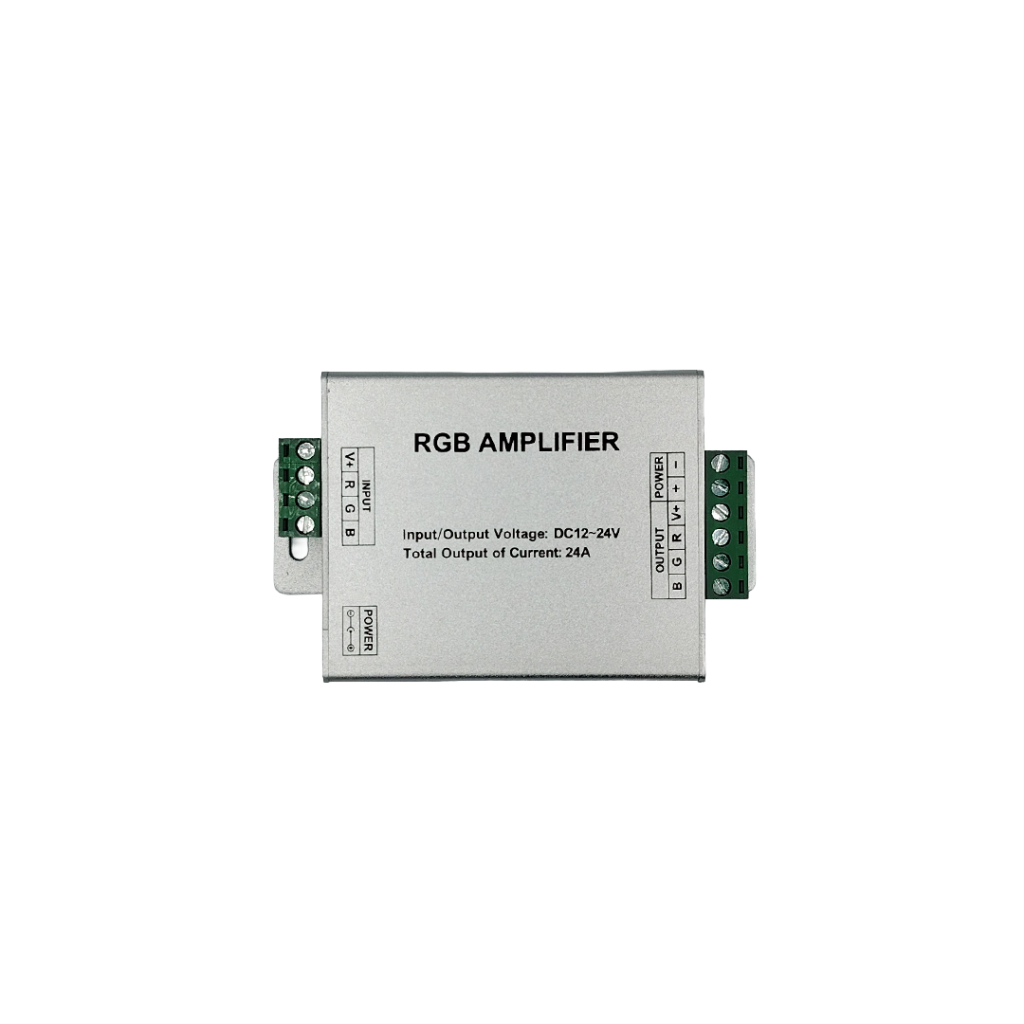

RGB LED Signal Amplifier – 12V / 24V
The RGB LED Signal Amplifier allows you to extend RGB LED strip installations while maintaining consistent brightness and colour accuracy. Designed for 4-pin RGB strip lights, this amplifier boosts the signal from your RGB controller, allowing you to power longer lighting runs without signal loss or colour variation.
Description
- RGB LED signal amplifier for extending RGB striplight installations
- Compatible with 4-pin analog RGB LED strip lights
- Designed for use with 12V and 24V DC RGB LED lighting systems
- Boosts the signal from an RGB controller to additional LED strips
- Maintains consistent brightness and colour accuracy across long runs
- Ideal for large RGB lighting installations requiring multiple striplight sections
- Supports maximum output current of 24A
- Maximum power capacity: 144W at 12V & 288W at 24V
- Allows multiple LED strips to operate from a single controller signal
- Helps prevent voltage drop and colour inconsistency in extended installations
- Durable aluminium housing for improved heat dissipation
- Screw terminal connections for secure and reliable wiring
- Simple plug-and-play integration with RGB controllers and LED strip lights
Additional information
| Input Voltage | DC12V, DC24V |
|---|---|
| Maximum Output | Current: 24A total |
| Maximum Power | 144W (12V) / 288W (24V) |
| LED Type Compatibility | 4-Pin Analog RGB LED Strips |
| Housing Material | Aluminium |
| Connection Type | Screw terminal connectors |
