Neon Flex 3D 16x16mm | IP67 | 24V
The Mesmerize Neon Flex 3D is a compact, fully flexible LED profile engineered to bend in three dimensions, making it ideal for curved signage, facade outlines and freeform architectural lighting. With a smooth, continuous glow and IP67 protection, it performs reliably both indoors and outdoors. Supplied complete with connectors and mounting profiles, it’s a plug-and-play solution for creative lighting installations.
Description
- DC24V operation
- SMD2835 LEDs, 120 LEDs/m for a seamless, dot-free glow
- 12W/m power consumption
- Luminous efficacy: 60 lm/W
- Lumen output: 708 lm/m
- FPCB width: 8mm
- Compact product size: 16mm × 16mm
- 3D bendable design for curves, waves and freeform shapes
- Cuttable every 50mm for flexible length customisation
- IP67 rated, suitable for indoor and outdoor applications

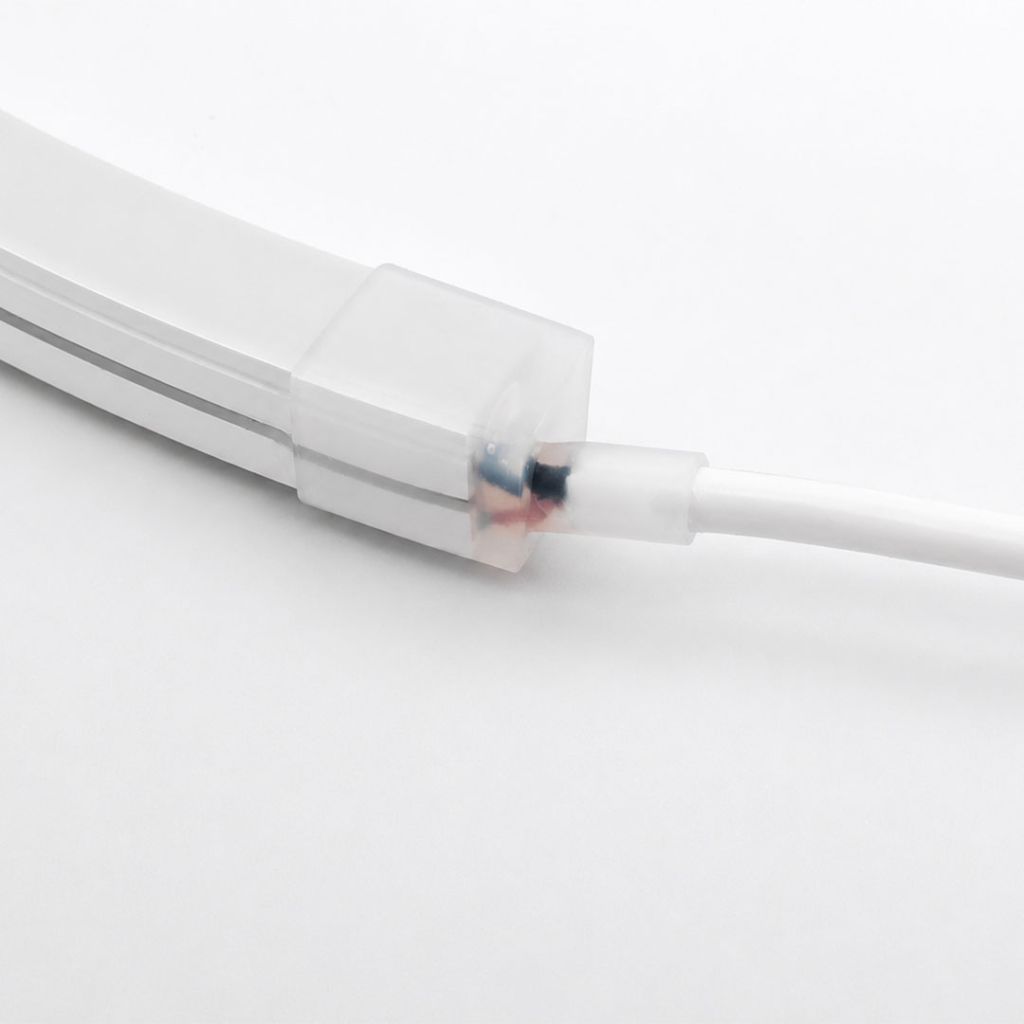

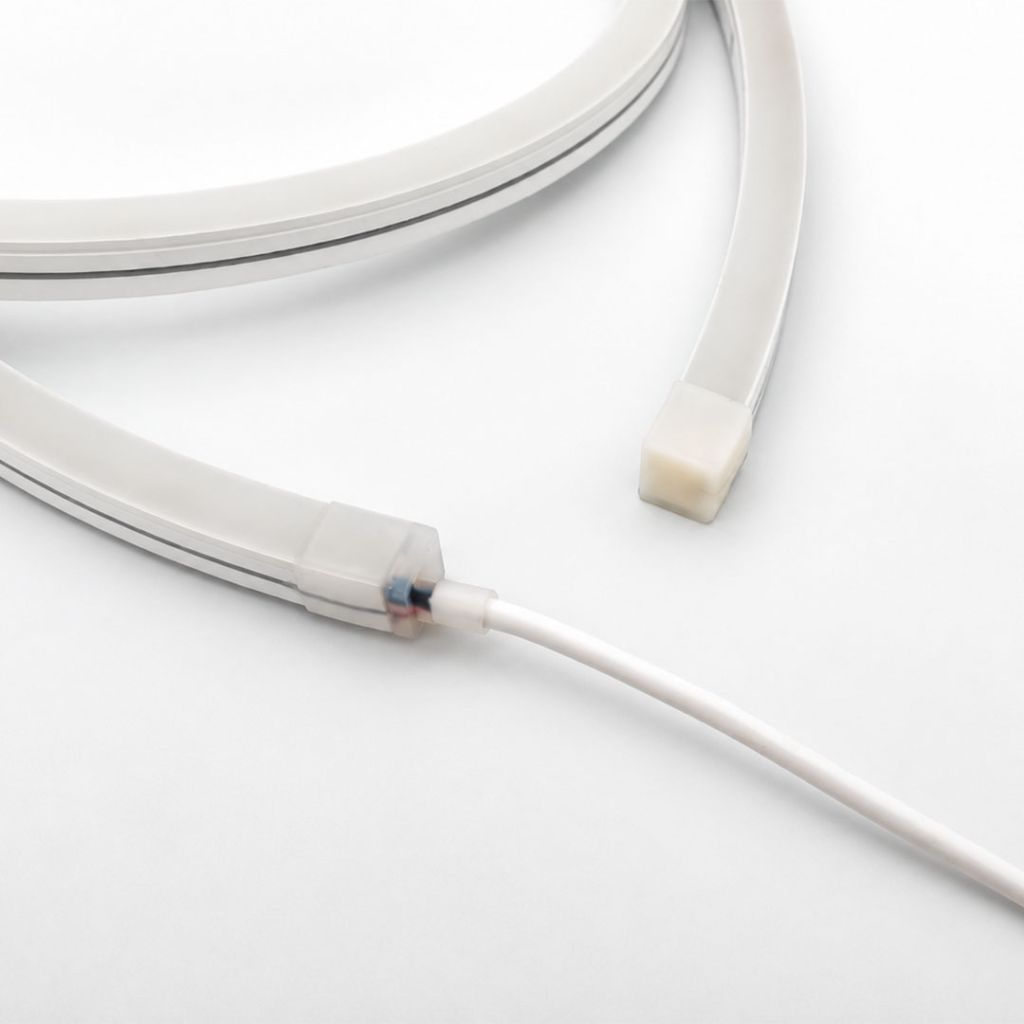

- Supplied in 5m rolls with front connector, master carton, warning label, reel label and manual
- Connector sets and mounting profiles are sold separately – see accessory range below

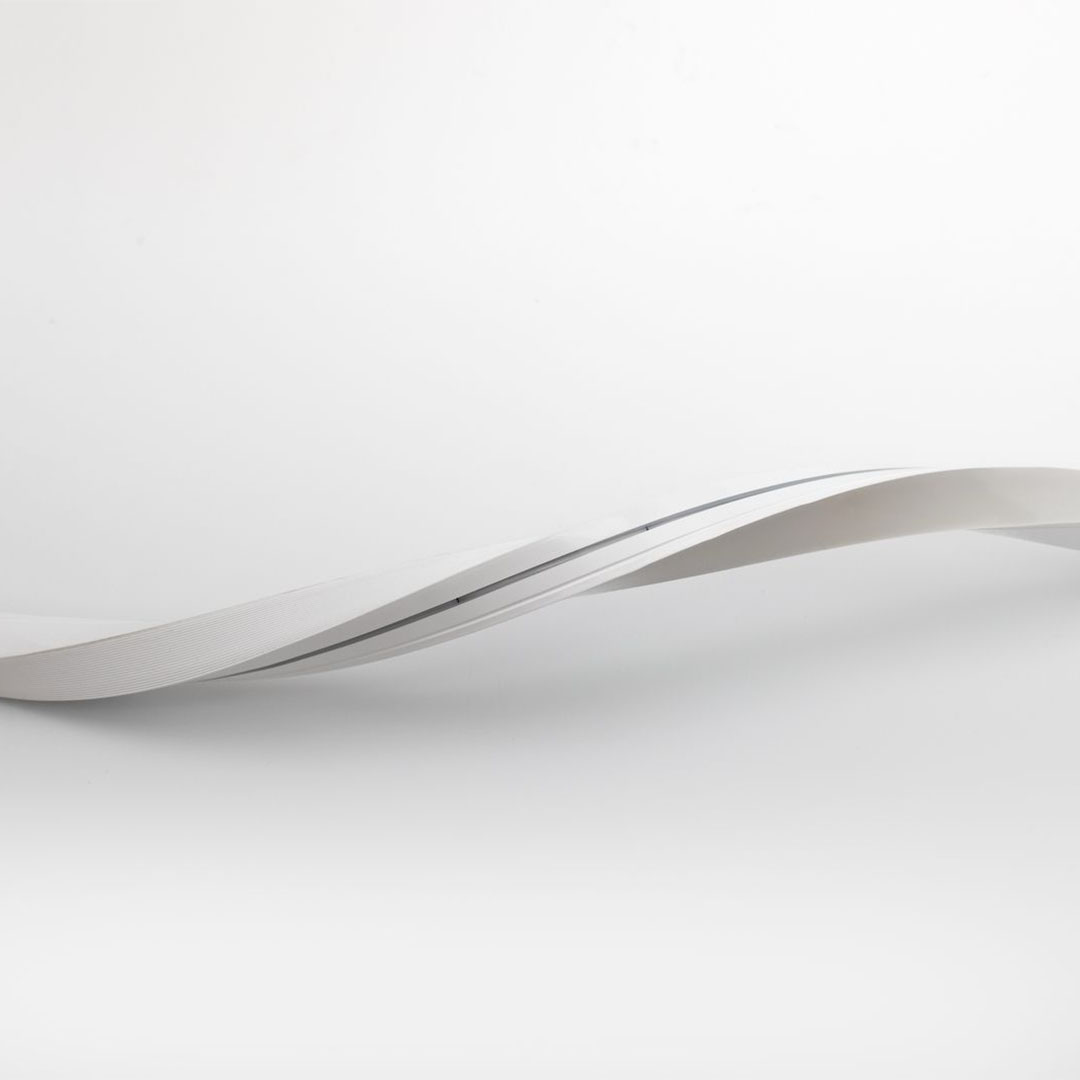

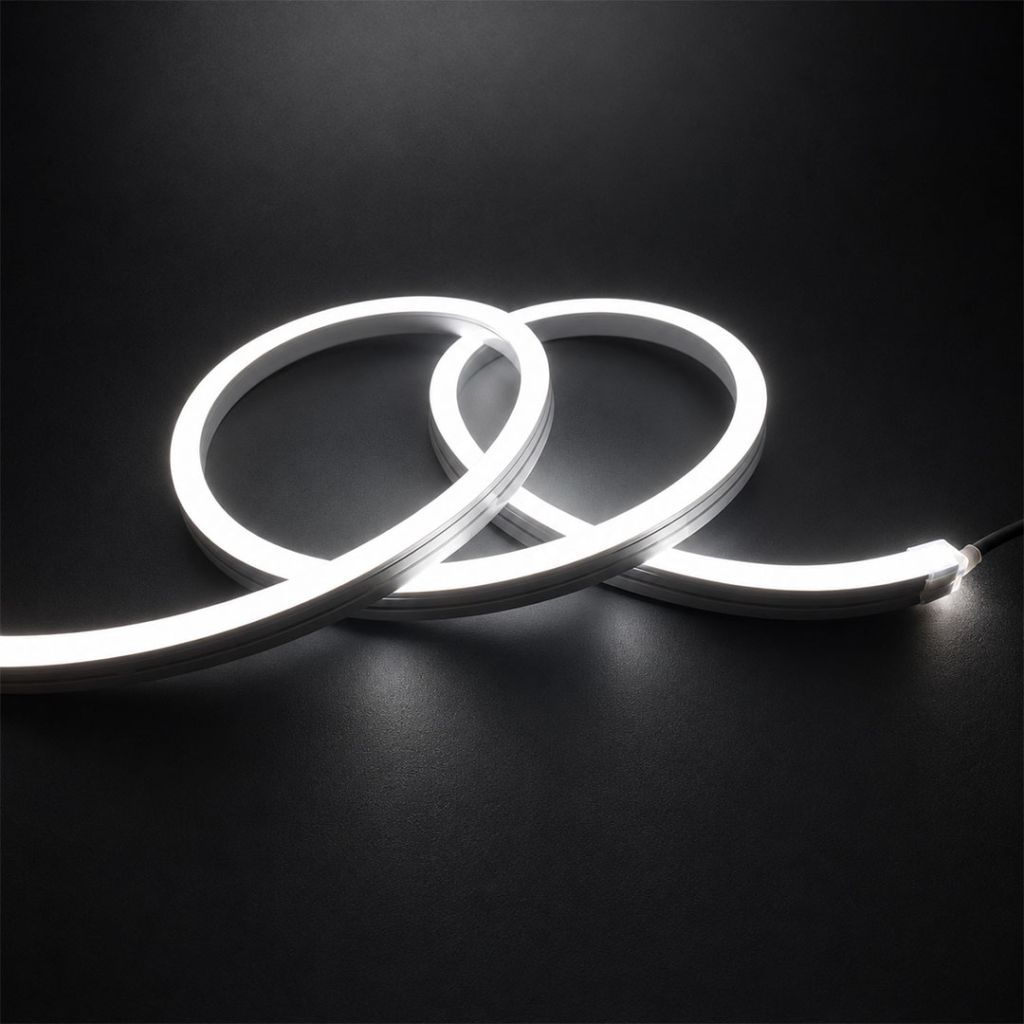

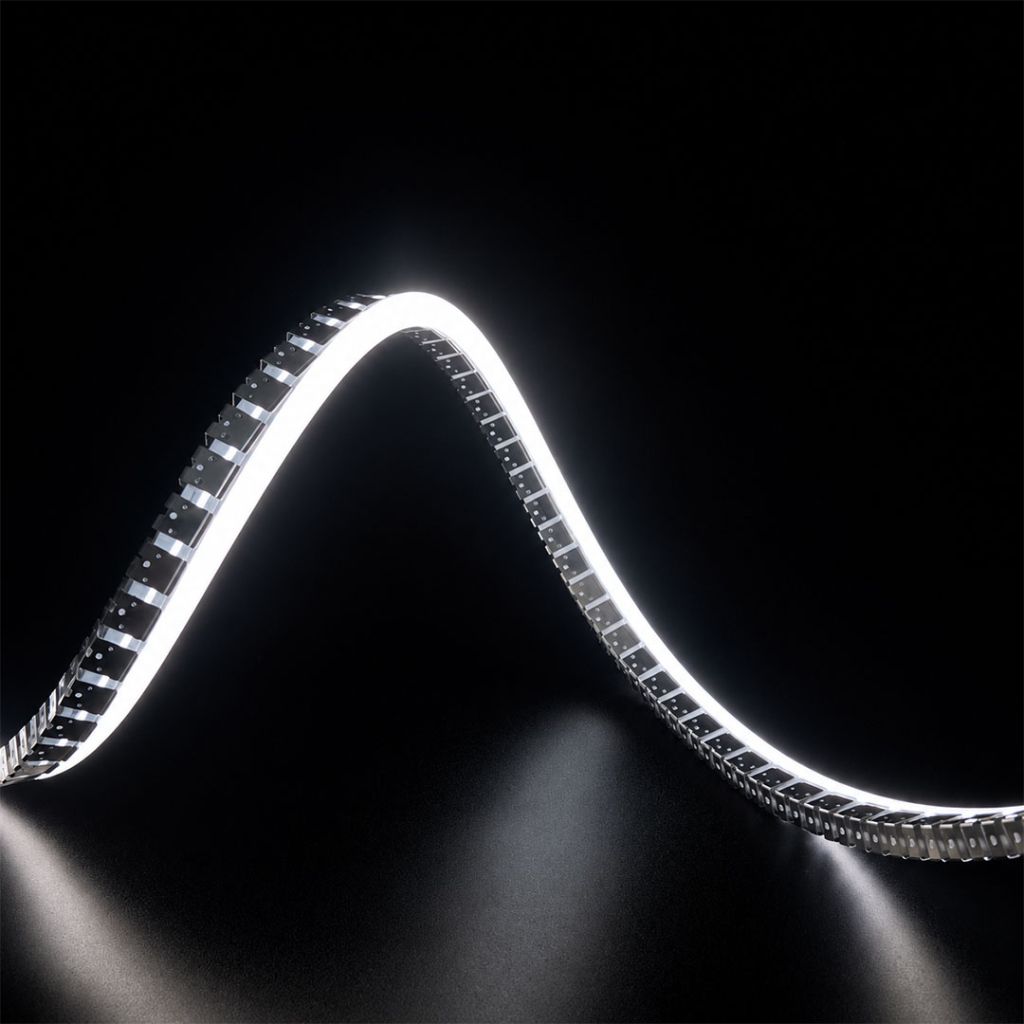

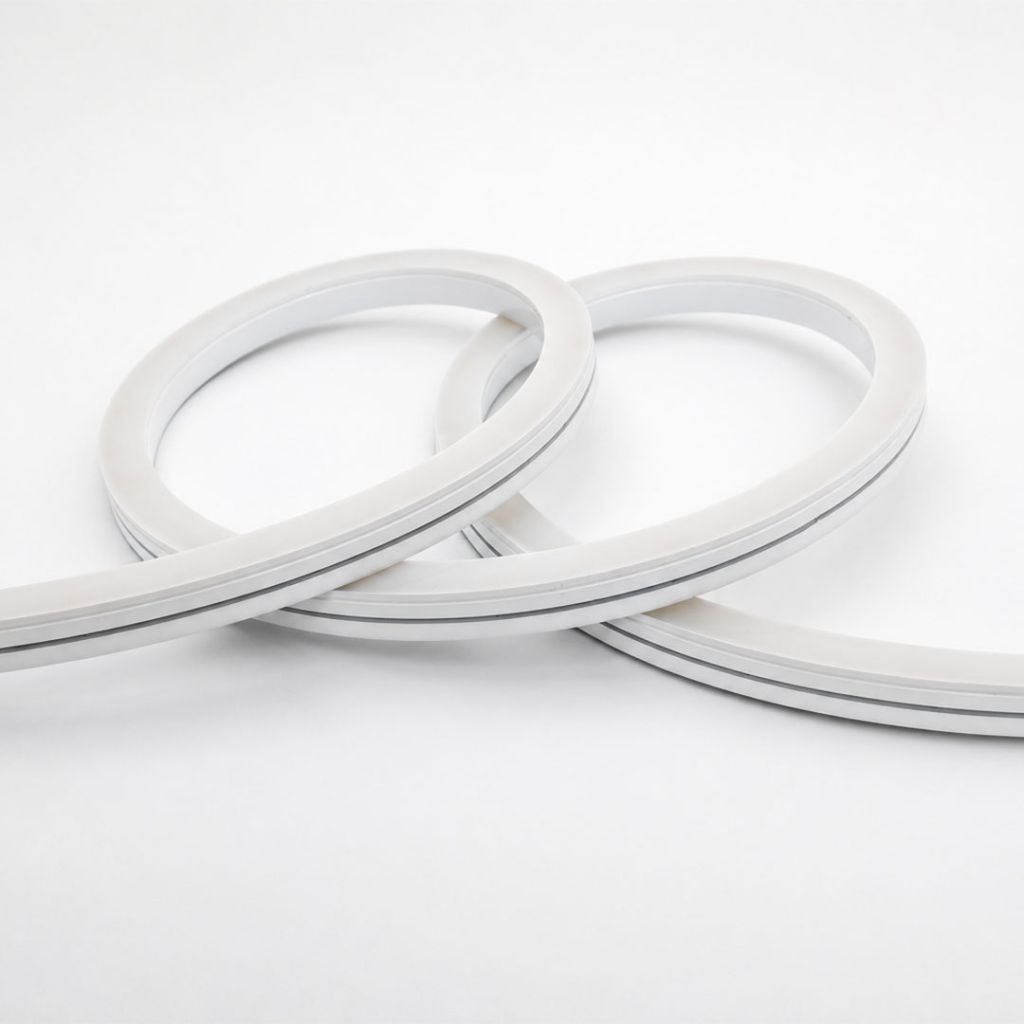

Bends In Every Direction
Showing: 6500K Cool White
Available colours shown above. The real strip bends and twists exactly like this - smooth curves in any direction, IP67 sealed.
Product Range / Accessories:
| Item No. | Description | Unit | Sold As |
|---|---|---|---|
| ML-NF-24V-3D-1616 | Mesmerize Neon Flex 24VDC 16×16mm 3D Bending IP67 (main strip, 5m/roll) | M | Main product |
| ML-NF-24V-3D-FCON | Front Wire + Front Connector + End Cap Set (3D) | Set | Sold separately |
| ML-NF-24V-3D-SMK | Surface Mounted Flexible Mounting Profile | M | Sold separately |

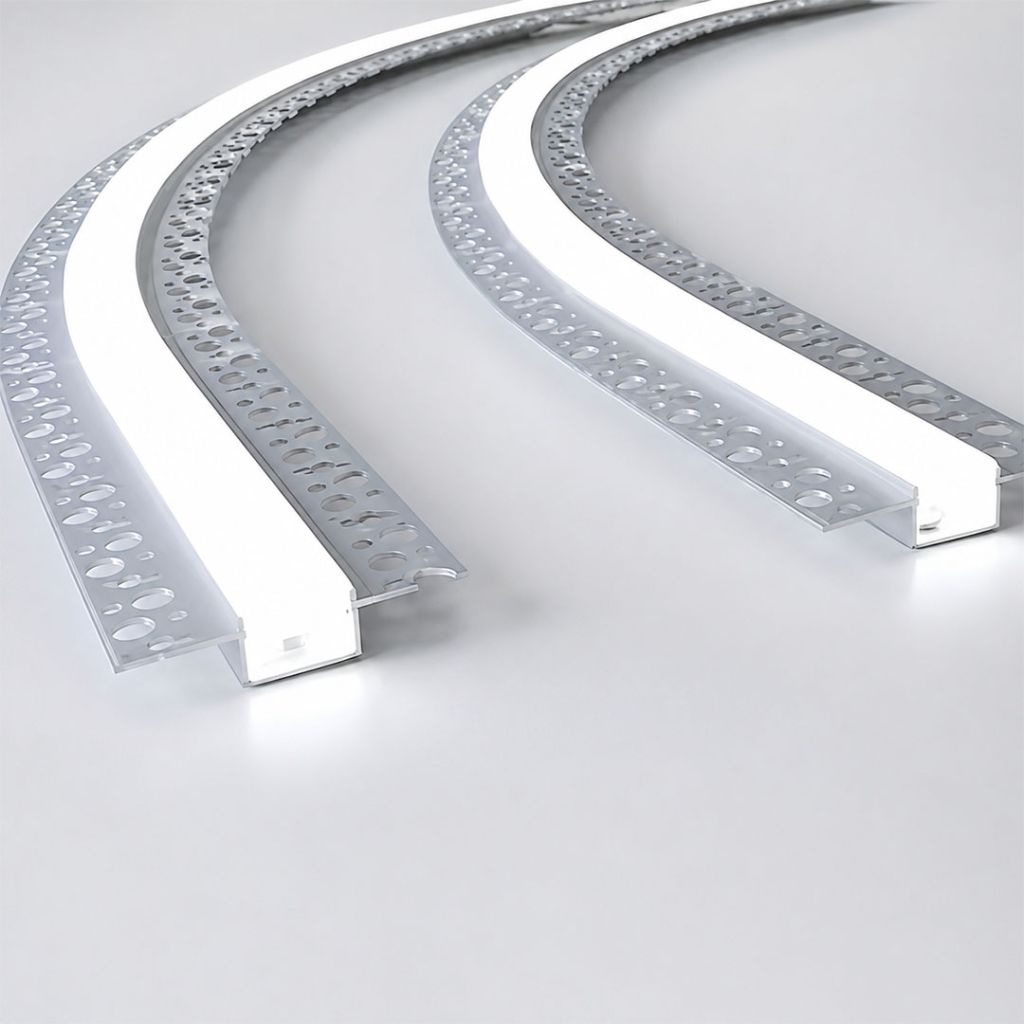

| ML-NF-24V-3D-RFK | Recessed Flexible Mounting Profile | M | Sold separately |
Additional information
| Input Voltage | DC24V |
|---|---|
| LED Density | 120 LEDs/m |
| Wattage | 12W/m |
| Effective Lumen | 708 lm/m |
| Colour Temperature (Kelvins) | 3000K / 4000K / 6500K, Blue |
| Colour Rendering Index | >82 |
| Bending Capability | 3D bendable (curves & waves) |
| Ingress Protection | IP67 |
| FPCB Width | 8mm |
| Cutting Interval | Every 50mm |
| Dimension | 16mm × 16mm |
