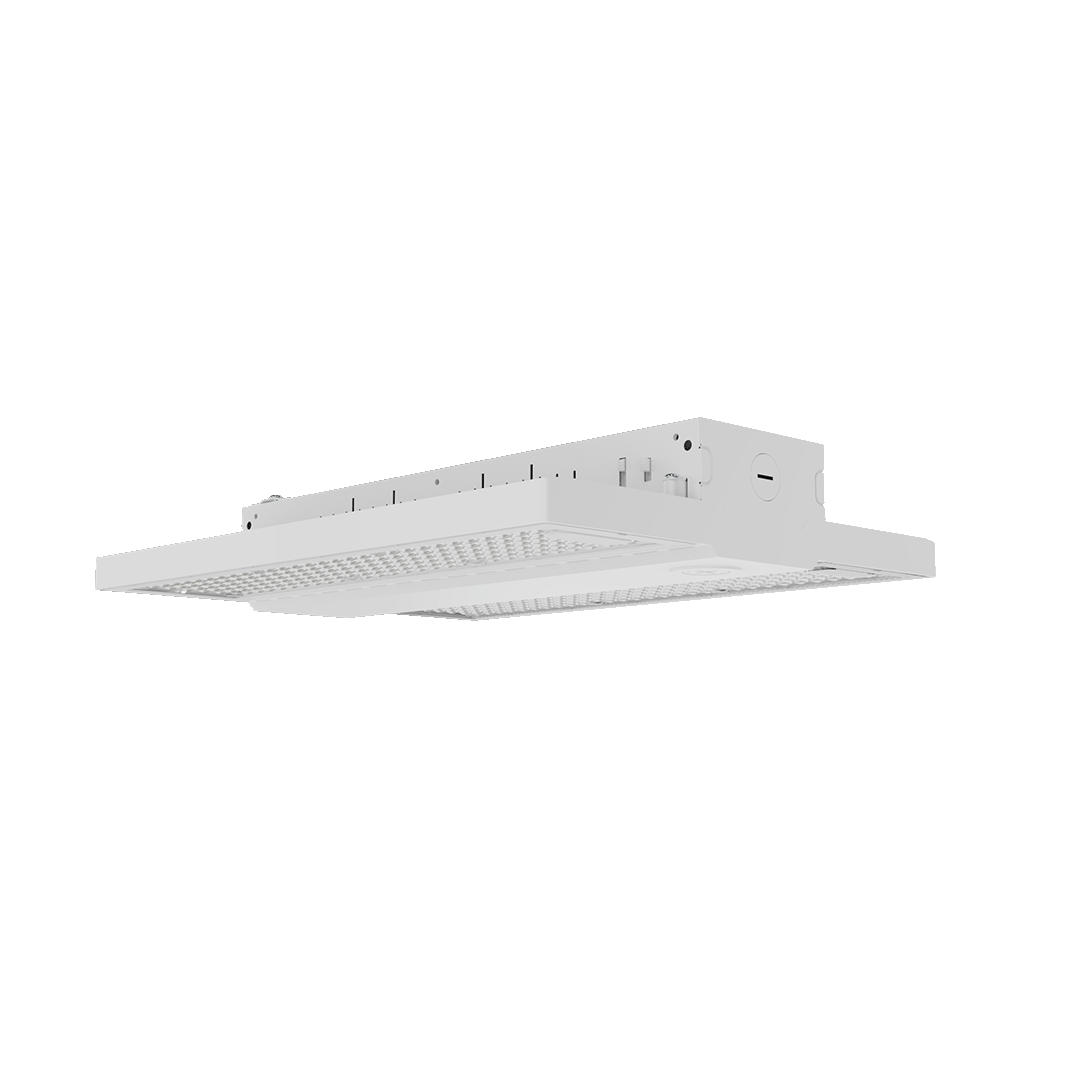

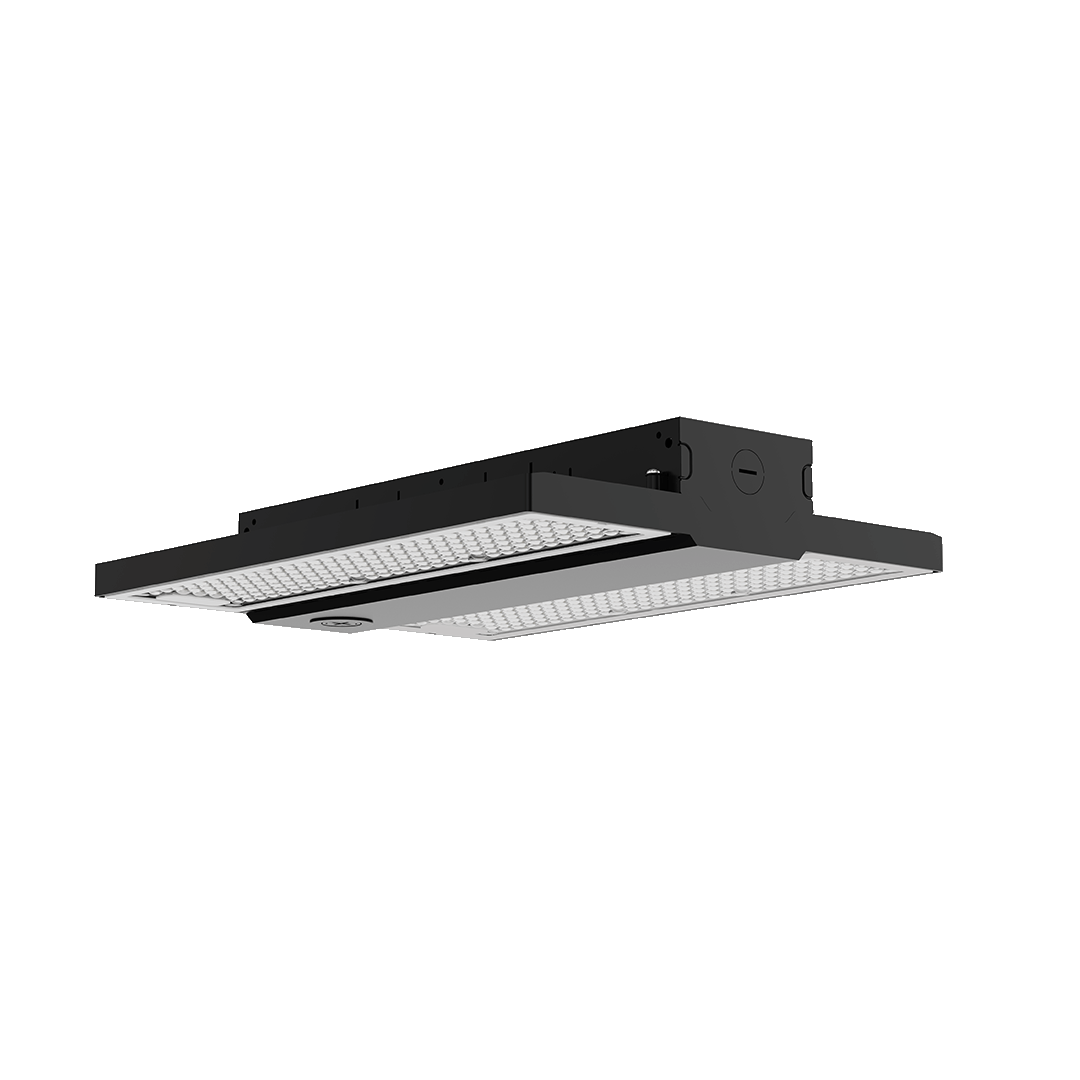

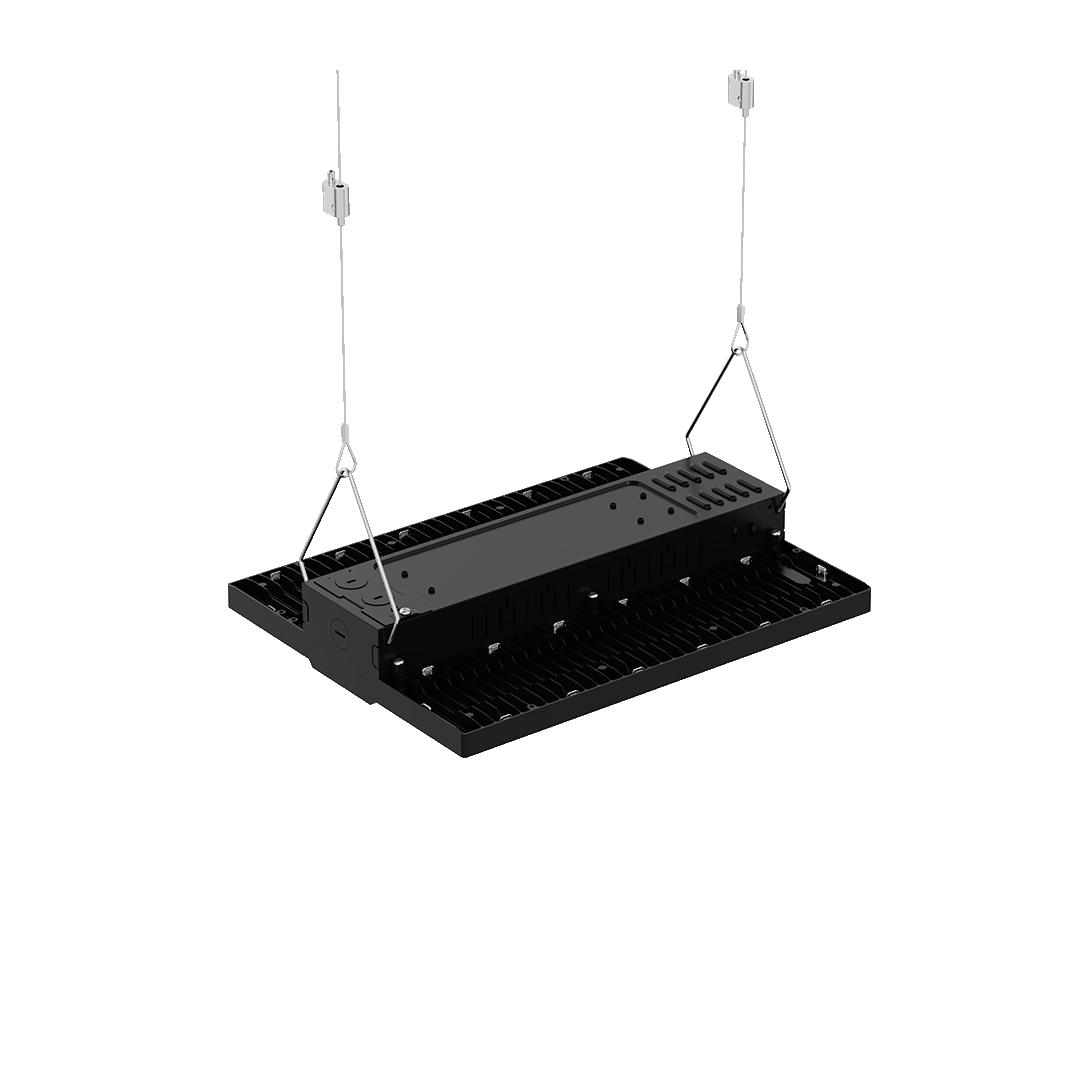

Matrix G2 – LED TBAY Highbay
The Mesmerize Lighting Matrix G2 LED T Bay Series delivers high-performance illumination with selectable power and CCT settings for total flexibility. Equipped with Lumileds LEDs, a robust Sosen driver, and Zhaga smart connectivity, it combines intelligent control, exceptional efficiency, and long-lasting reliability in one sleek, precision-engineered design.
Description
- MESMERIZE precision-engineered Matrix G2 housing design
- Selectable Power: 120W / 160W / 200W via DIP switch
- Selectable CCT: 4000K / 5000K via DIP switch
- Lumileds SMD2835 LEDs, up to 185 lm/W @ 120W
- Sosen driver with 6kV surge protection

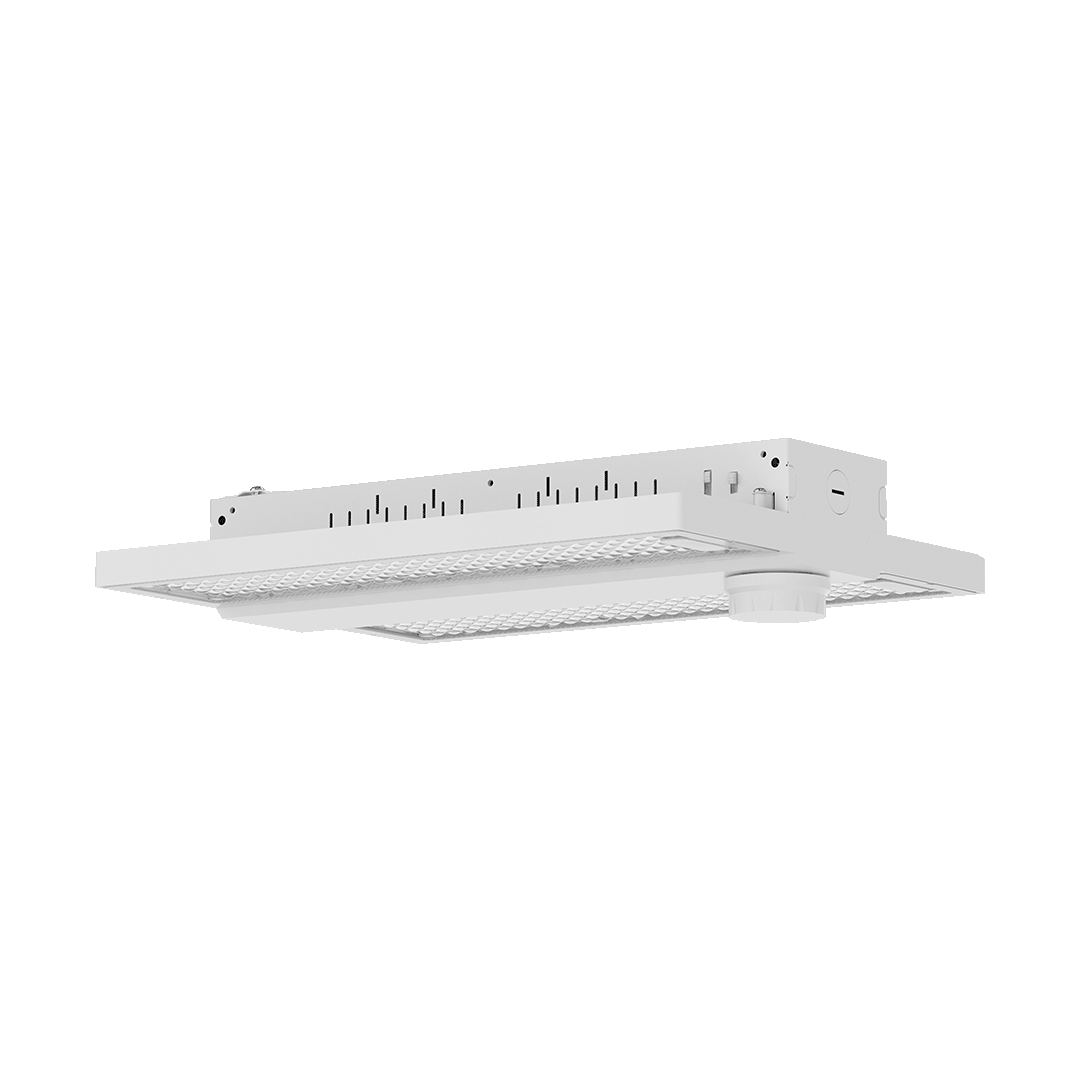

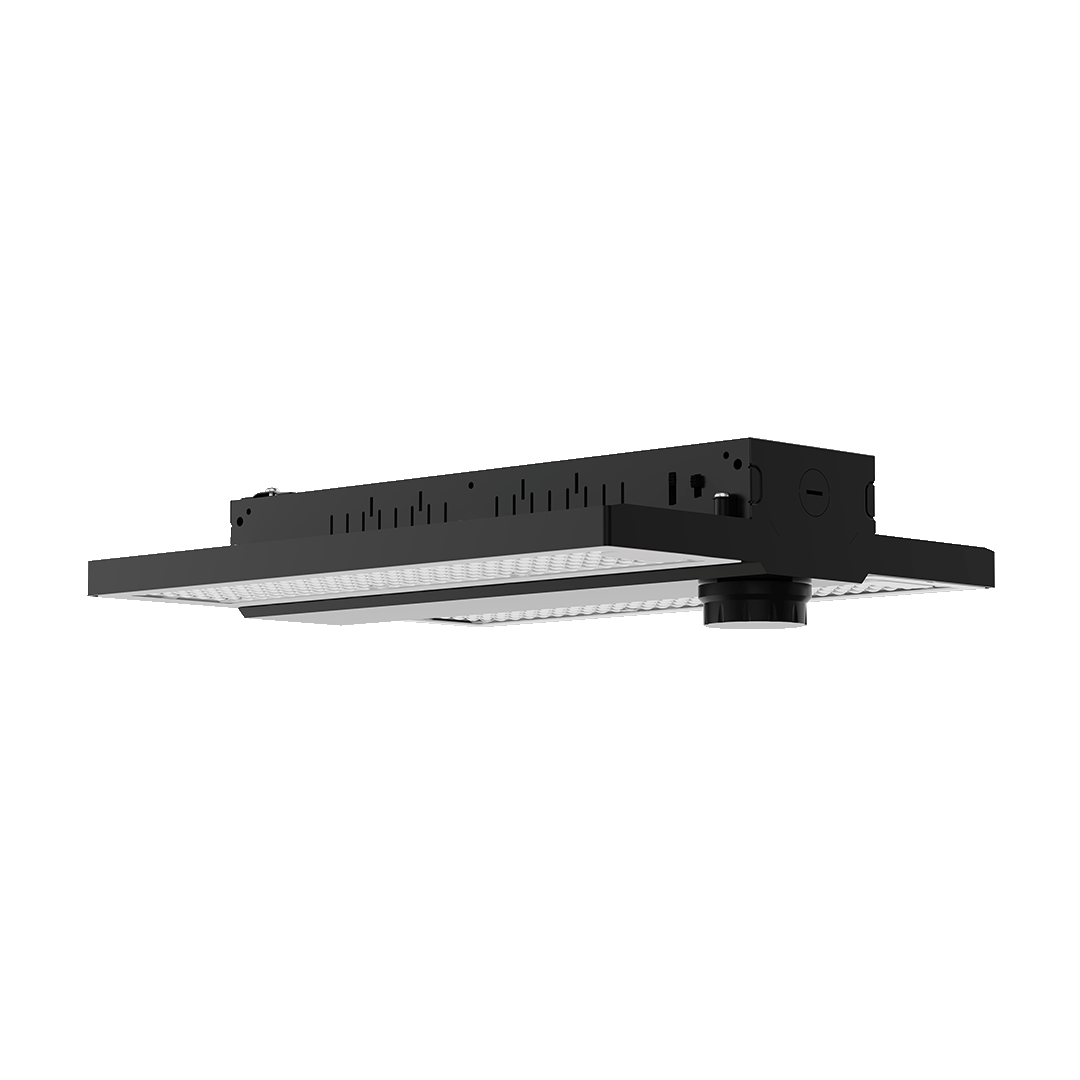

- Zhaga connector for intelligent add-ons (microwave sensor, dimming, lux, Bluetooth)
- ADC12 die-cast aluminium housing for superior heat dissipation
- UGR <22 @90°, glare-controlled optics
- Beam angles: 90° (standard) / 110° / 45×100° (optional)
- Power Factor >0.95, Efficiency Class C (ErP 2.0)
- Ingress Protection: IP54 | Impact Rating: IK08
- Operating Temperature: -20°C ~ +50°C
- L90B10 54,000 hours @25°C rated lifespan
- Input Voltage: AC 90–305V | 50/60Hz
- Cable: 1m H05 graded cable
- Main Materials: ADC12 Aluminium Housing
- Certifications: IEC60598 / CE / ENEC / RoHS / ErP 2.0 / SAA
- Warranty: 5 Years
- Dimensions: L370mm × W300mm × H70mm
Additional information
| Dimensions | N/A |
|---|---|
| Available Colors | Black, White |
| Wattage | 200W, 120W, 160W |
| Effective Lumen | 23000lm ±5%, 30000lm ±5%, 36000lm ±5% |
| Colour Temperature (Kelvins) | 4000K / 5000K |
| Beam Angle | 90° |
| Input Voltage | AC90~305V |
| Power Factor | 0.95PF |
| Dimmable | 3-in-1 Dimmable |
| Surge Protection | 6kV |
