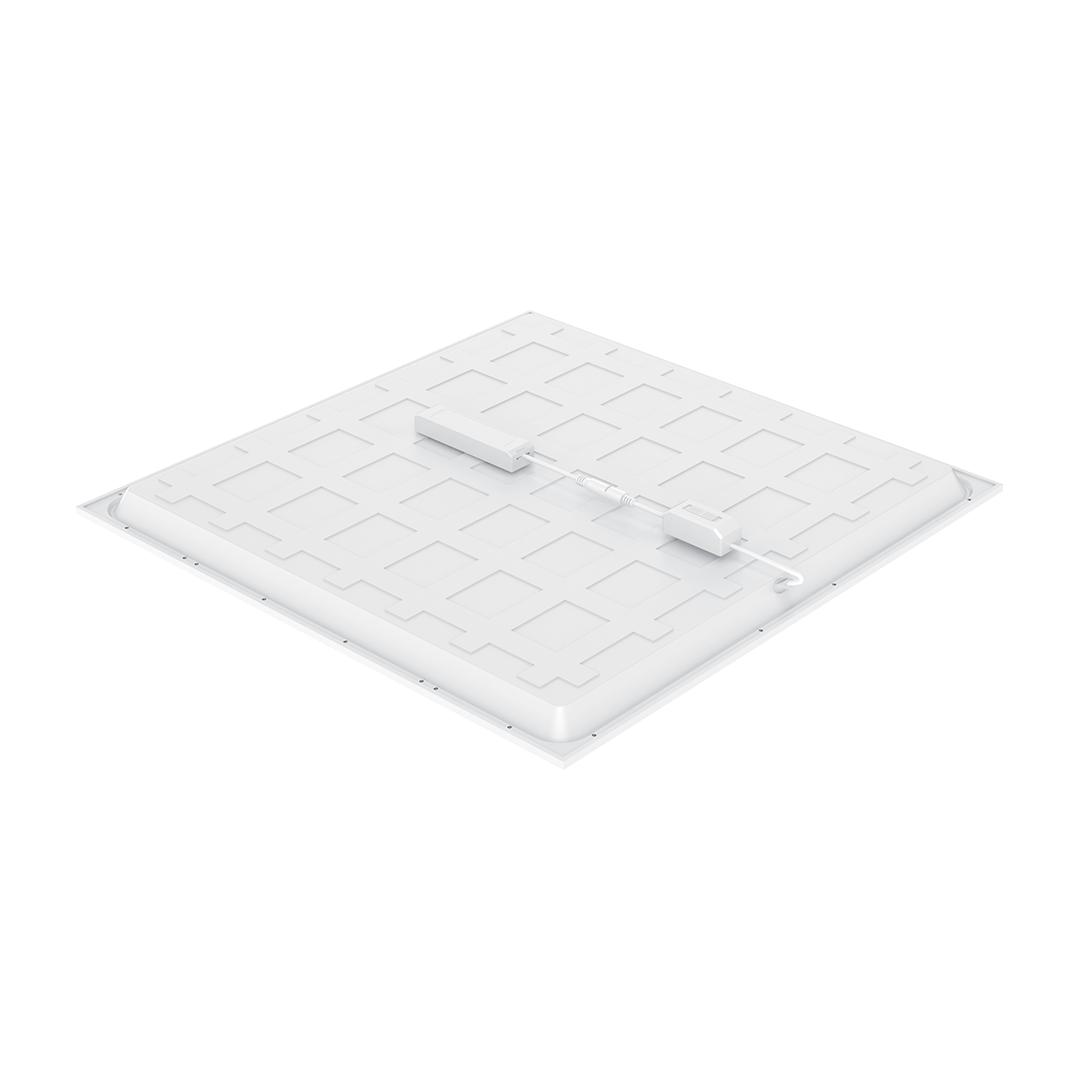

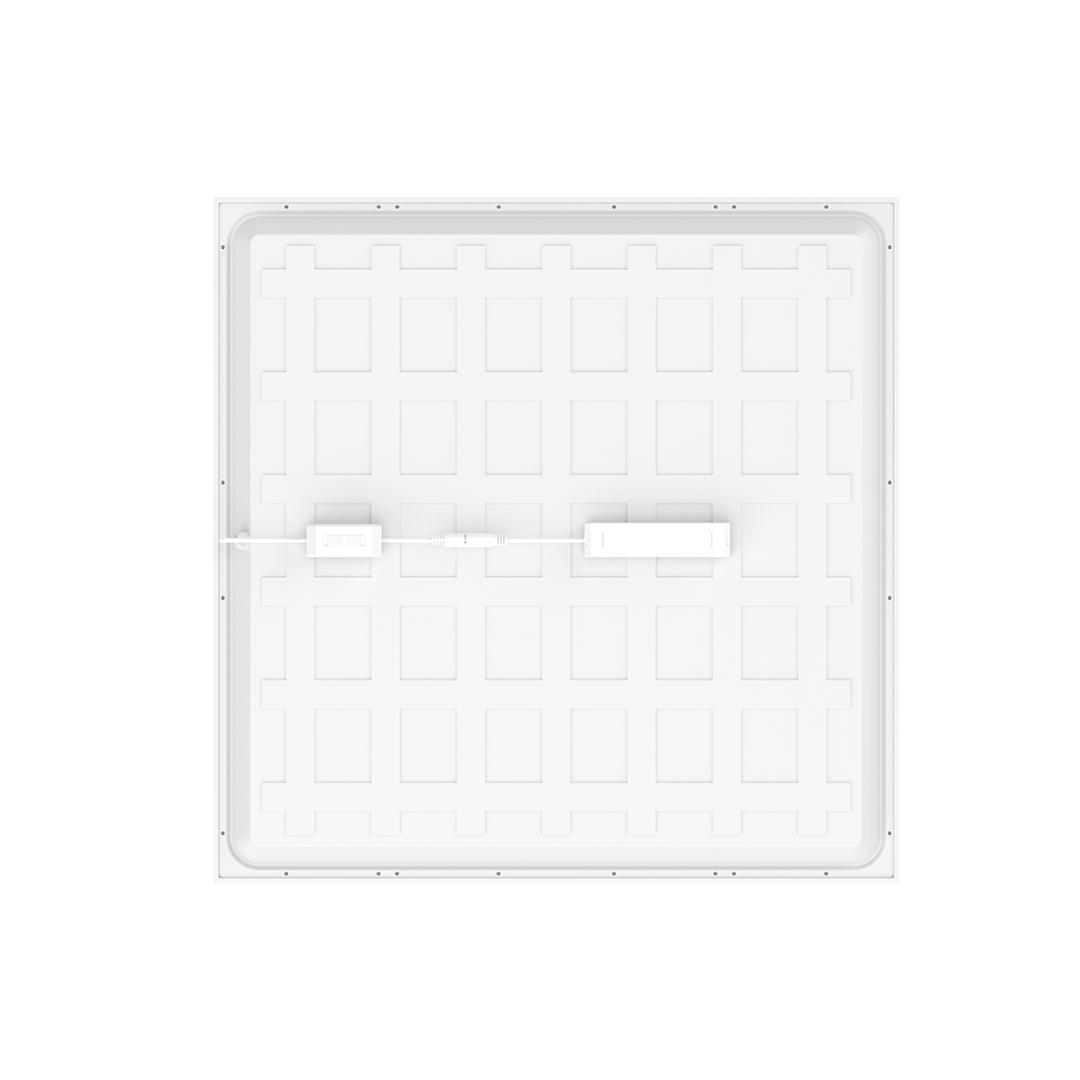

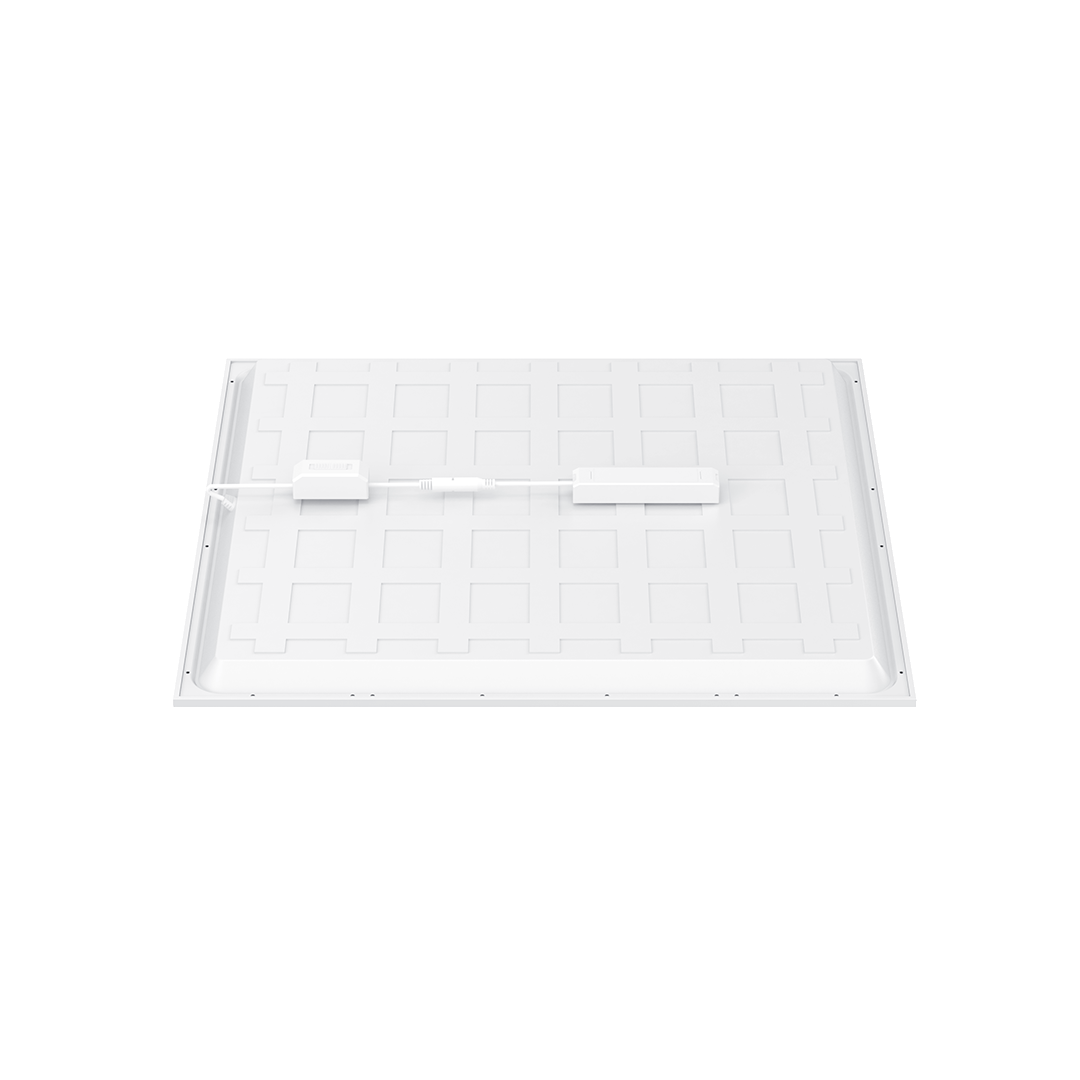

Mantra Pro LED Backlit Panel 600×600 CCT
The Mesmerize Mantra Pro 28W CCT LED Backlit Panel 600 × 600 is a premium commercial-grade ceiling panel built for standard square ceiling grids. With innovative backlit technology, selectable CCT (4500K / 5000K / 6500K), 4000 lumen output, RA>85 colour rendering, low UGR<22 glare, and a flicker-free EMC-passed design, it’s the perfect fit for offices, retail stores, hospitals, schools, and restaurants. Backed by a 5-year warranty.
Description
- 28W power with 4000 lumens output: Bright, efficient illumination for general commercial use

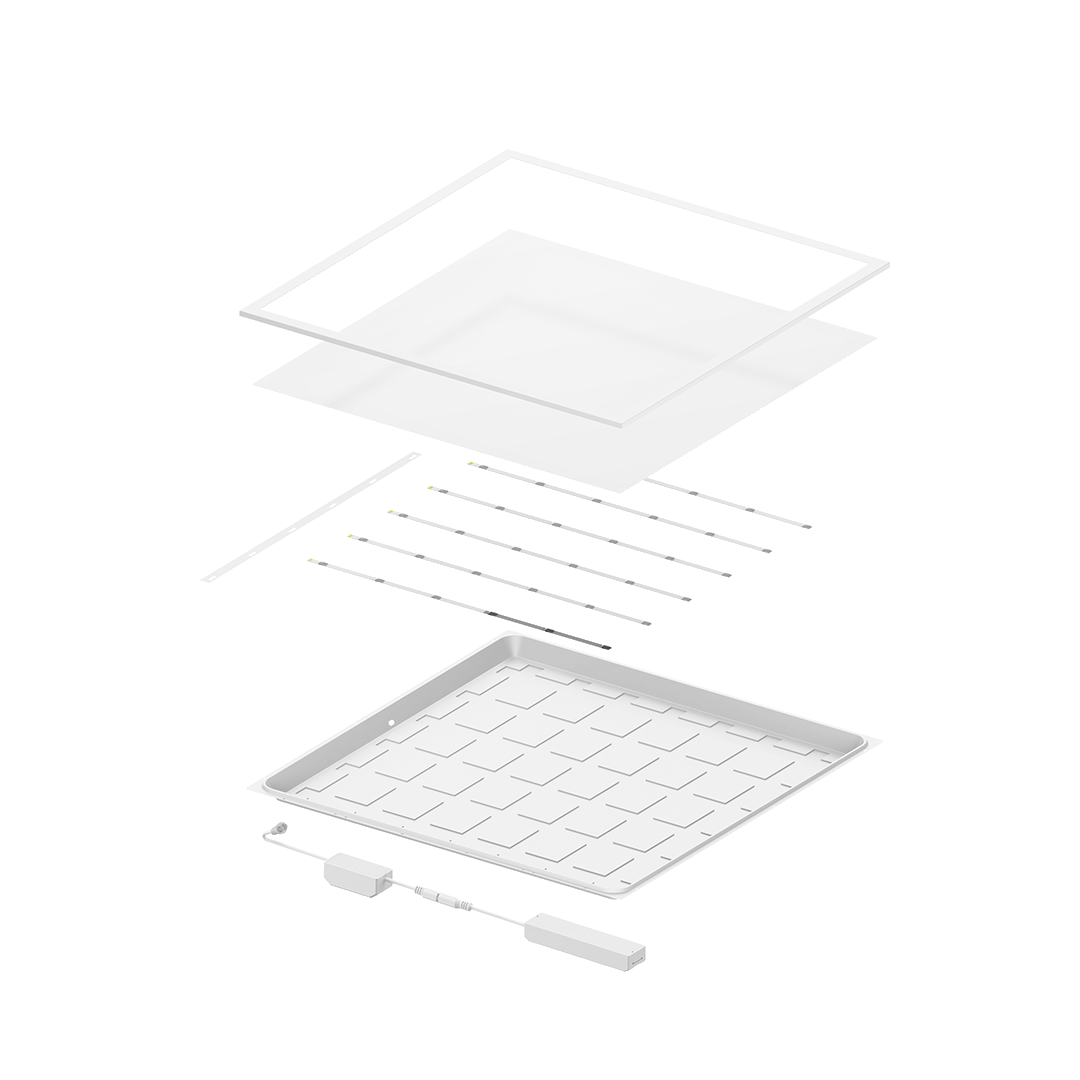

- Innovative backlit technology: Eliminates the yellowing of dark spots that affect traditional edge-lit panels – consistent, even light across the entire surface

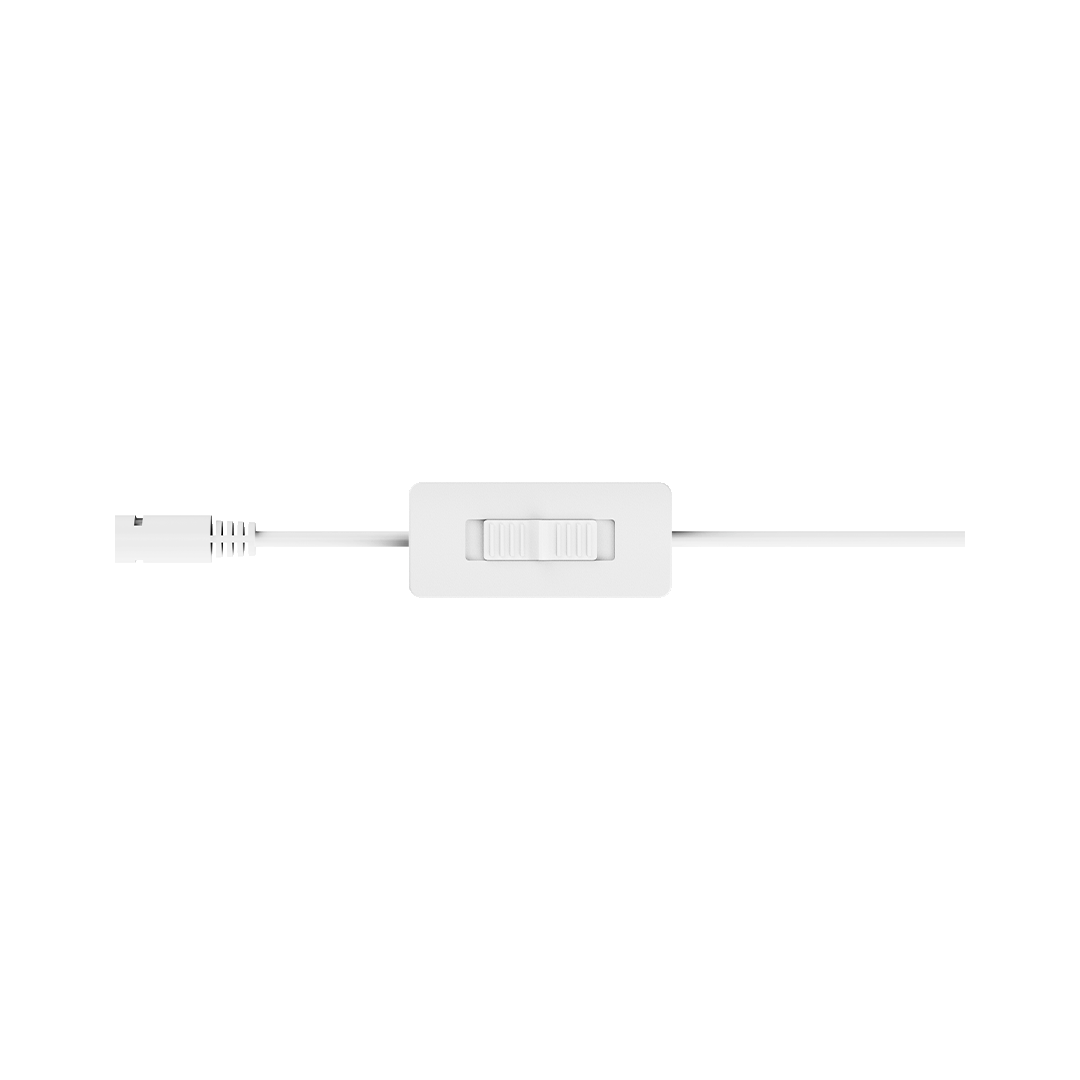

- 3CCT selectable: Switch between 4500K (warm-cool), 5000K (daylight), and 6500K (cool white) to match the space and task
- High RA > 85 colour rendering: Excellent colour accuracy for retail displays, hospitals, and offices
- Low glare UGR < 22: Visually comfortable for long working hours – protects eye health
- Flicker free and EMC passed: Eye-strain-free output with clean electrical operation
- SMD2835 LEDs: Premium chips with proven reliability and high efficiency
- 110° beam angle: Wide, even spread for full room coverage
- Designed for standard square ceiling grids: Drops into 600 × 600mm modular ceiling systems with no fuss
- Wide input voltage: AC 170-264V at 50/60Hz for global compatibility
- 2kV surge protection: Defence against electrical spikes
- Power factor of 0.9: Efficient power use
- External isolated driver: Reliable and easy to service
- Dimmable: Compatible with dimming systems (driver-dependent)
- Battery backup available: Optional emergency lighting backup at additional cost
- Surface mount & suspension kits available: Flexible installation for solid ceilings and feature applications
- Iron backplate with aluminium housing: Strong, durable construction with excellent heat dissipation
- Slim 32mm profile: Sits flush in standard ceiling grids
- 55,000-hour lifespan: L80B20 rated for over a decade of reliable commercial use
- Fully certified: IEC / CE / RoHS / ErP compliant
- 5-year warranty
- Note: Continuous 24/7 operation will reduce LED lifespan – best suited to standard business-hours use

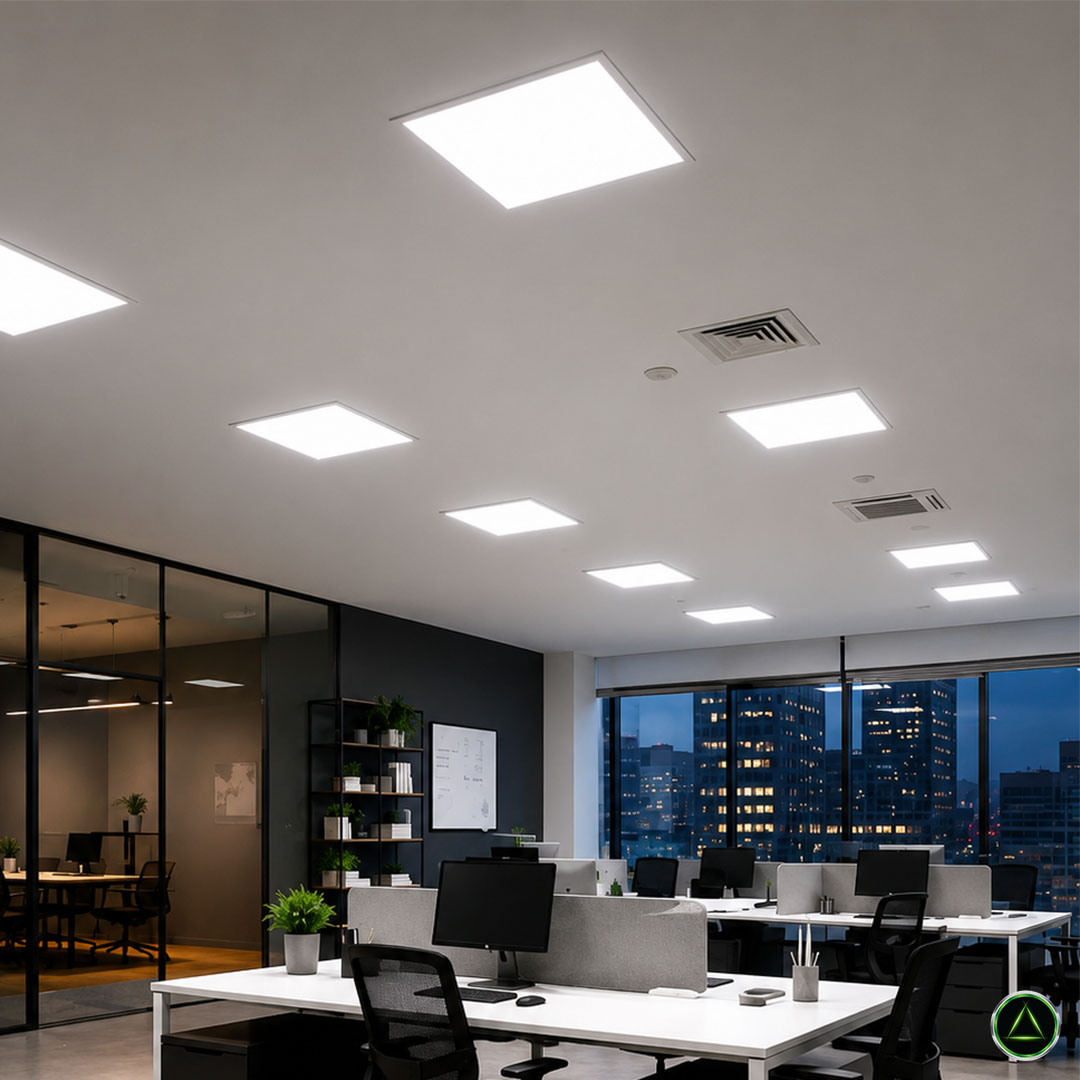

- Versatile applications: Offices, retail stores, hospitals, restaurants, schools, conference rooms, reception areas, and classrooms
Additional information
| LEDs | SMD 2835 |
|---|---|
| Colour Temperature | 4500K / 5000K / 6500K (Selectable) |
| Effective Lumen | 4000 |
| Colour Rendering Index | >85 |
| Unified Glare Rating | <22 |
| Wattage | 28W |
| Beam Angle | 110° |
| Power Factor | 0.9PF |
| Operating Temperature | -10°C ~ 40°C |
| Input Voltage | AC170 ~ 264V |
| Surge Protection | 2kV |
| Dimmable | Yes (Available) |
| Flicker Free | Yes (EMC Passed) |
| Battery Backup | Available (optional, additional cost) |
| Ingress Protection | IP40 |
| Dimension | 595 × 595 × 32mm |
| Lifespan | 55,000 Hours |
| Warranty | 5 Years |
| Certifications | CE, IEC, ROHS, SAA, ErP |
