Caesar LED Bulkhead
The Caesar LED Bulkhead is a premium die-cast aluminium surface-mounted bulkhead light with field-selectable power (15W / 20W / 25W) and 4-channel CCT (2200K / 3000K / 4000K / 6500K) – both set via convenient dip switches. IP66 weatherproof, IK08 impact-rated, and backed by a 5-year warranty. Available in Round and Square designs, finished in Matt Black or Matt White.
Description
- Selectable power output: Choose 15W, 20W, or 25W via dip switch – match brightness to each installation without needing separate stock
- 4-Channel selectable CCT: Switch between 2200K ultra-warm, 3000K warm, 4000K neutral, and 6500K cool white using the built-in dip switch
- Versatile lumen range: 1200 / 1600 / 2000 lm (Round) or 1500 / 2000 / 2500 lm (Square) depending on power setting
- IP66 weatherproof rating: Fully dust-tight and protected against powerful water jets – built for the harshest outdoor and wet environments
- IK08 impact rating: Vandal- and impact-resistant for high-traffic public areas
- Die-cast ADC12 aluminium housing: Superior heat dissipation and rugged long-term durability
- Polycarbonate diffuser: Even, glare-free light output
- MEZ Switch DOB Driver: Built-in for reliable, flicker-free operation (flicker index < 0.5%)
- Ra80 colour rendering: Natural, accurate light reproduction (R9 > 0)
- 120° beam angle: Wide, even light spread for general illumination
- Wide voltage range: 180–277Vac input (rated 220–240Vac) for global compatibility
- Enhanced surge protection: L-N: 1kV, L/N-PE: 2kV (IEC/EN61000-4-5 compliant)
- Pre-wired with cables: Ready-to-install convenience straight out of the box
- 50,000-hour lifespan: L70B50 rated for years of reliable operation
- Class I protection: Earthed for enhanced electrical safety

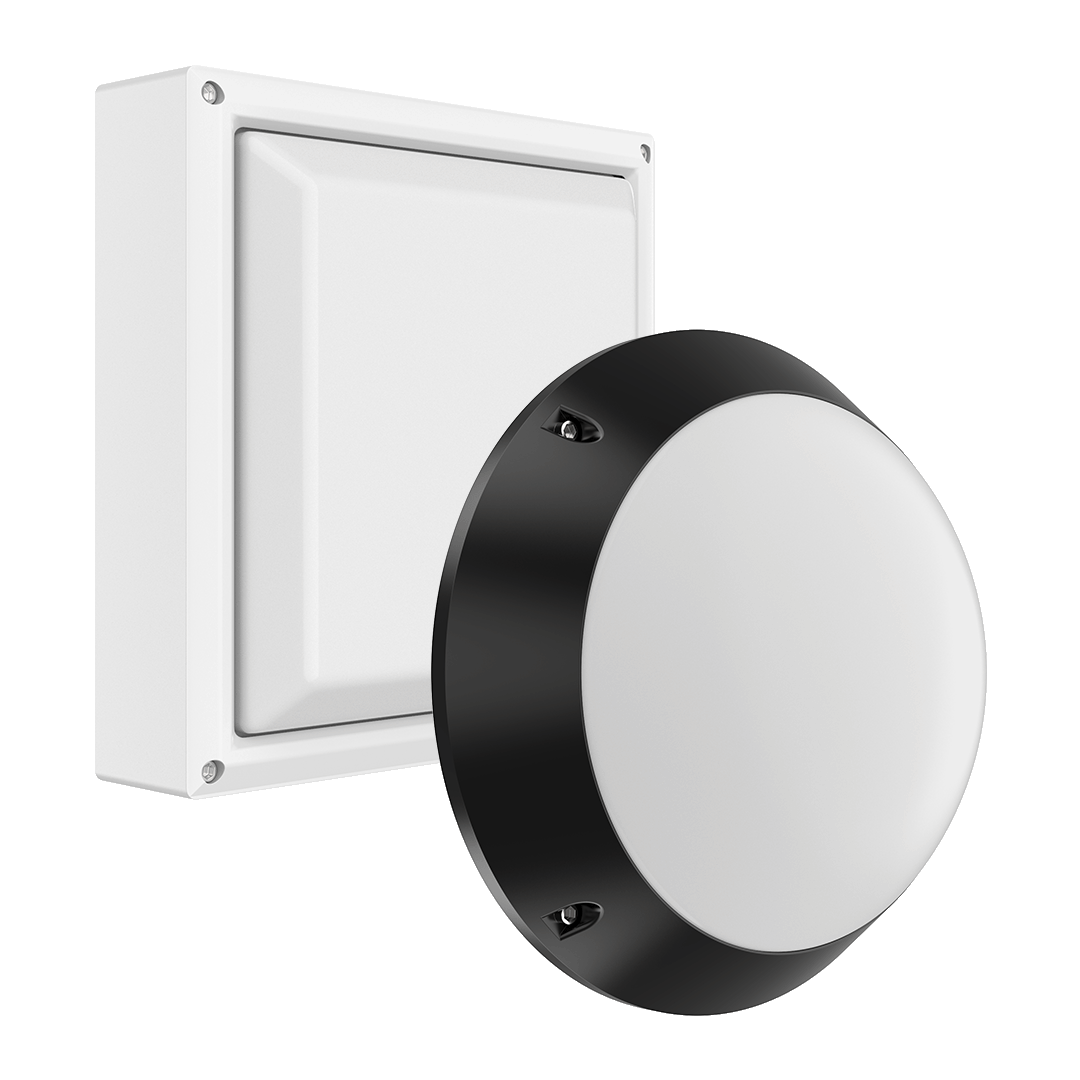

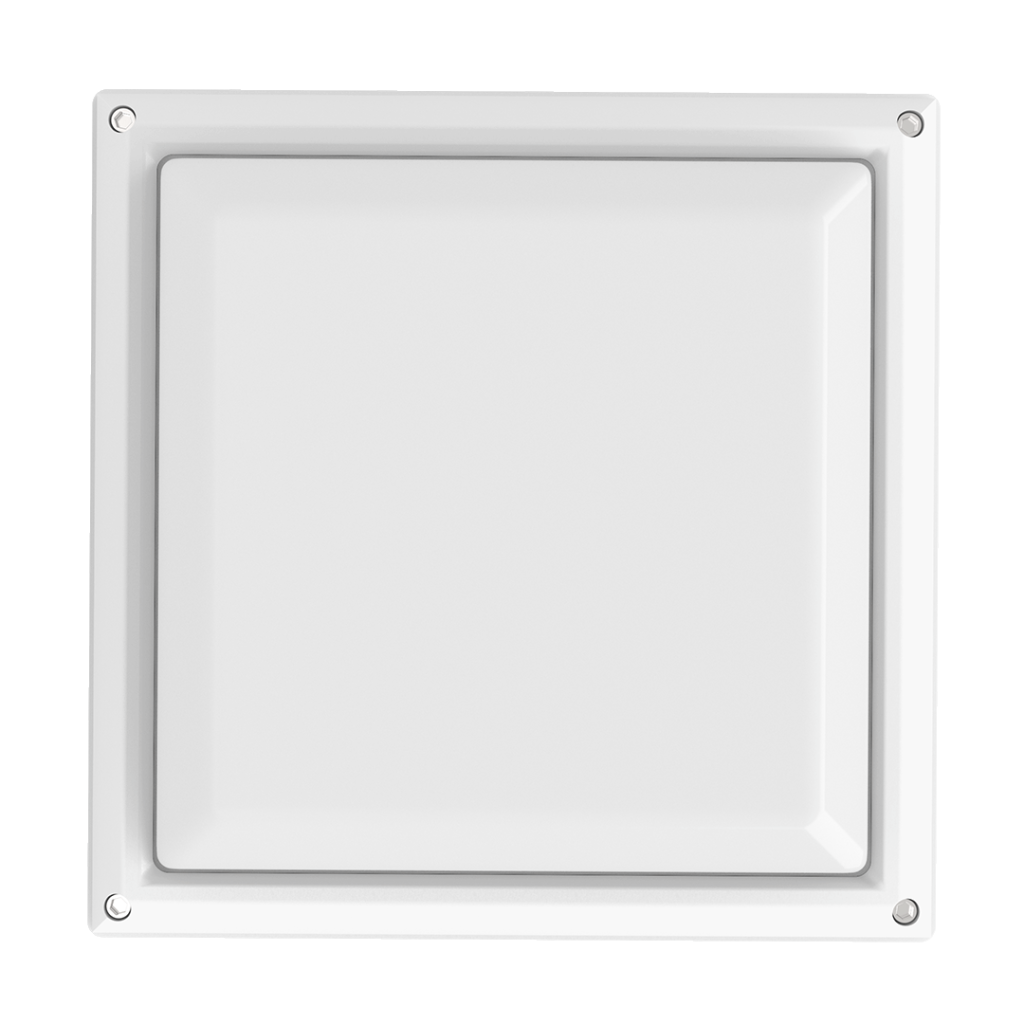

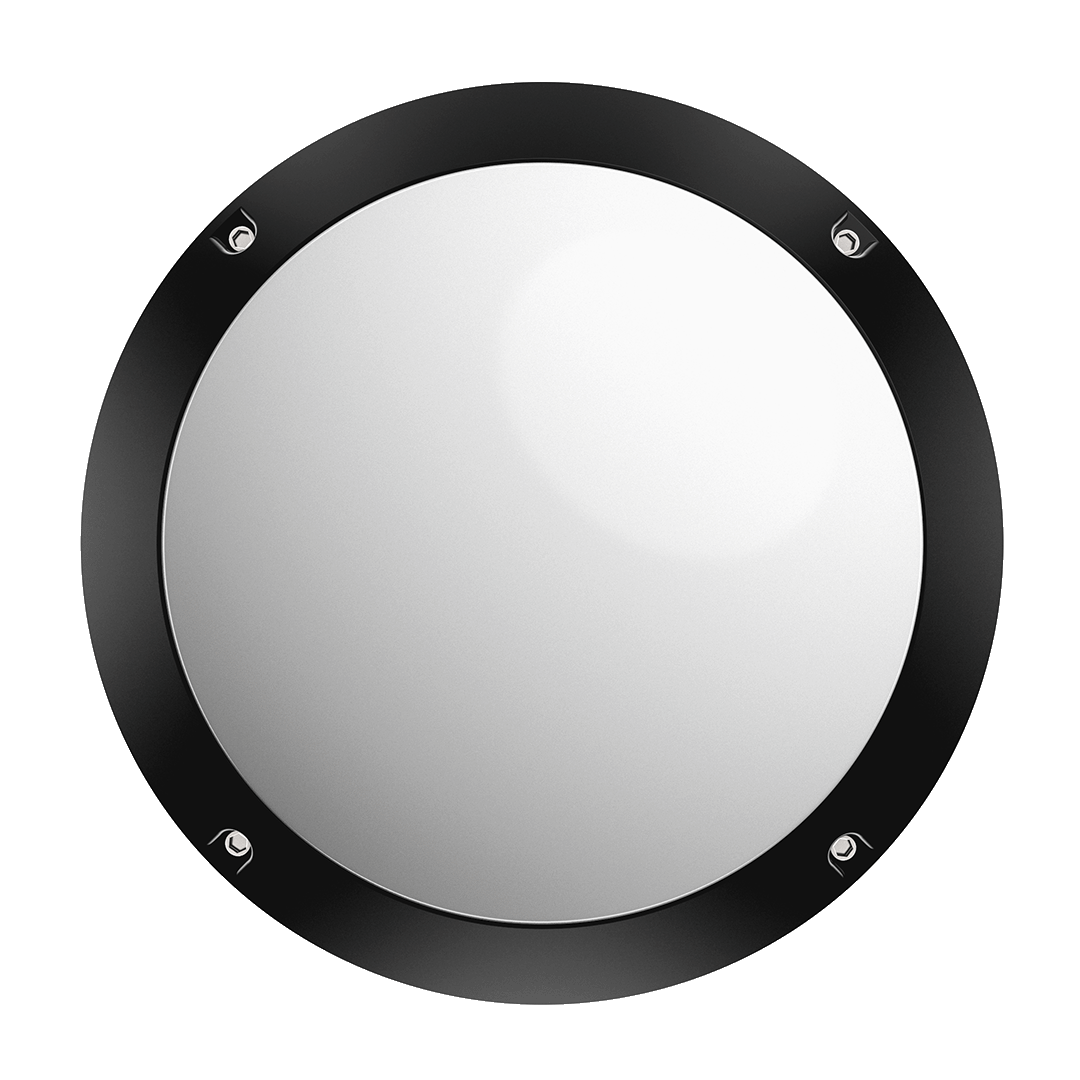

- Two shape options: Round (D280 × H105mm) or Square (270 × 270 × 80mm)
- Two colour finishes available: Matt Black and Matt White to suit any architectural setting
- Fully certified: IEC60598-1&2 tested, CB / RoHS compliant
- 5-year warranty
- Versatile applications: Hallways, stairwells, garages, basements, balconies, entrance walls, common areas, residential complexes, commercial buildings, and outdoor walkways
Additional information
| Weight | N/A |
|---|---|
| Wattage | 15W / 20W / 25W (dip switch) |
| Shape | Round, Square |
| Available Colors | Matt Black, Matt White |
| Colour Temperature (Kelvins) | 2200K / 3000K / 4000K / 6500K (CCT dip switch) |
| Effective Lumen | 1200 / 1600 / 2000 lm (Round), 1500 / 2000 / 2500 lm (Square) |
| Colour Rendering Index | >80 |
| Beam Angle | 120° |
| Input Voltage | AC180~277VAC |
| Dimmable | No |
| Surge Protection | L-N: 1kV, L/N-PE: 2kV |
| Ingress Protection | IP66 |
| Impact Rating | IK08 |
| Operating Temperature | -20°C~45°C |
| Mounting Option | Surface Mount |
| Lifespan | 50,000 Hours |
| Warranty | 5 Years |
| Dimension | Round (D280 × H105mm), Square (270 × 270 × 80mm) |
