Brutus G2 LED Bulkhead

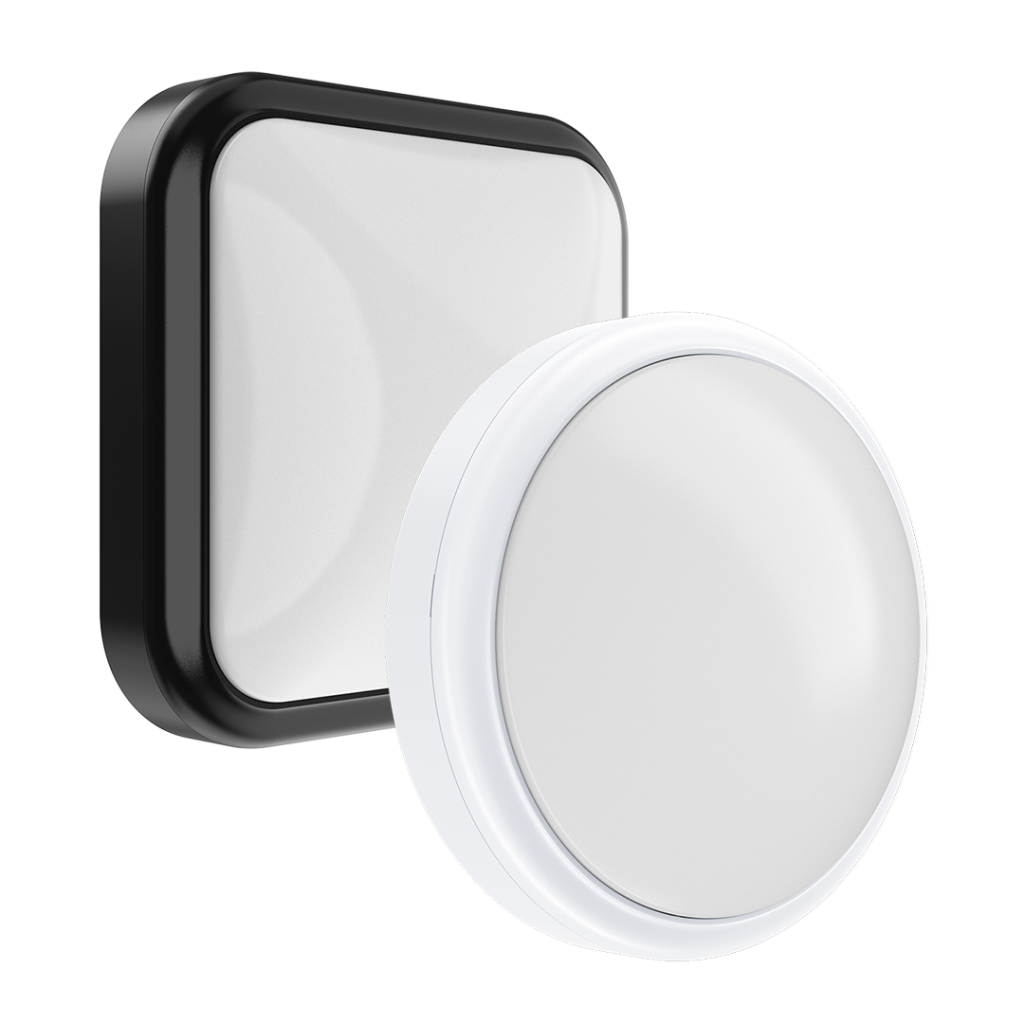

The Brutus G2 LED Bulkhead is a premium surface-mounted bulkhead light with field-selectable power (15W / 20W / 25W) and CCT (3000K / 4000K / 6500K) – both set via convenient dip switches. IP65 weatherproof and IK08 impact-rated, it suits indoor and outdoor applications including hallways, stairwells, garages, balconies, and entrance walls. Available in Round and Square designs, in Matt White and Matt Black.
Description
- Selectable power output: Choose 15W, 20W, or 25W via dip switch – match brightness to each installation without needing separate stock
- Selectable CCT: Switch between 3000K warm, 4000K neutral, and 6500K cool white using the built-in dip switch
- Versatile lumen range: 1500 / 2000 / 2500 lm output depending on power setting
- IP65 weatherproof rating: Fully dust-tight and protected against water jets for indoor and outdoor use
- IK08 impact rating: Resistant to knocks, vandalism, and impact in public areas
- Ra80 colour rendering: Natural, accurate light reproduction (R9 > 0)
- 120° beam angle: Wide, even light spread for general illumination
- Surface-mounted design: Mounts directly onto ceilings or walls – no recess required
- Built-in non-isolated driver: Clean, flicker-free output (flicker index < 0.5%)
- Wide voltage range: 180–277Vac input (rated 220–240Vac) for global compatibility
- 1kV surge protection: L-N defence against grid spikes (IEC/EN61000-4-5 compliant)
- Class II protection: Double-insulated for enhanced safety

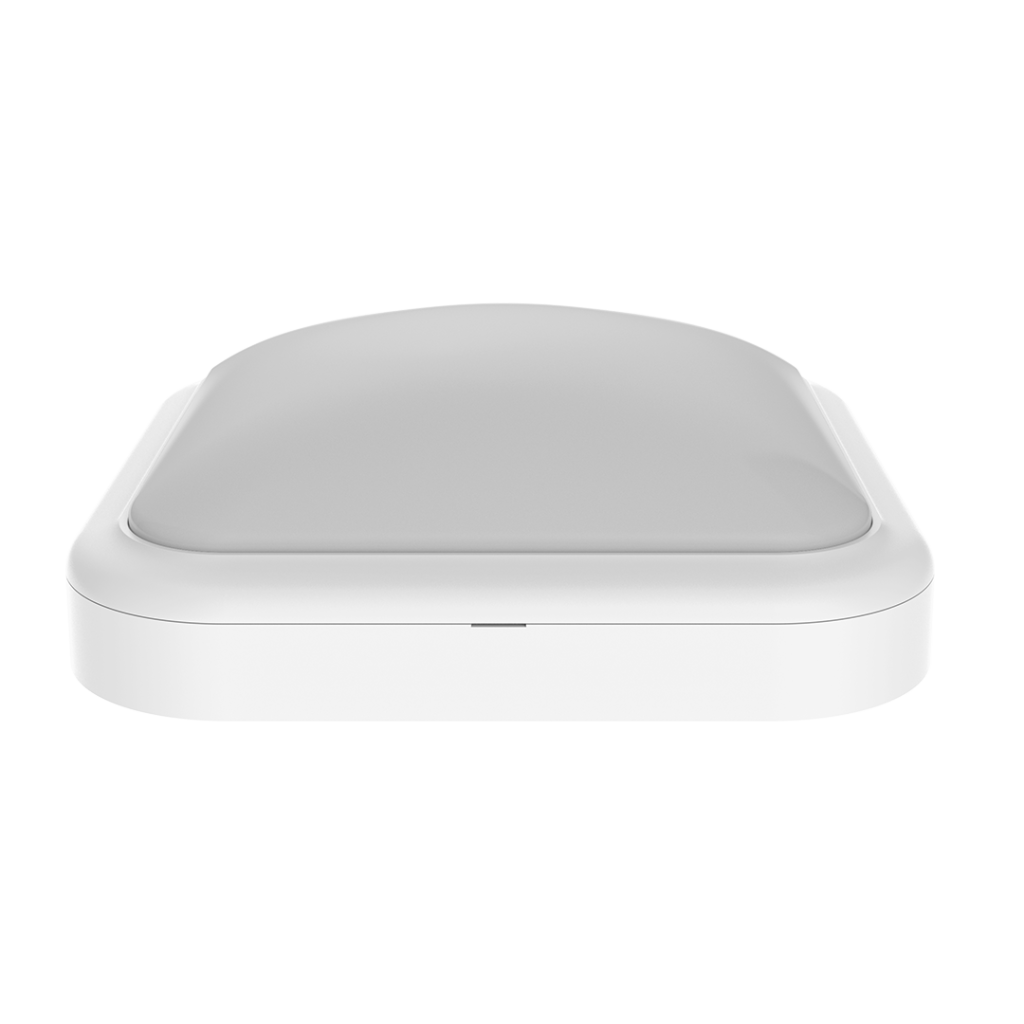

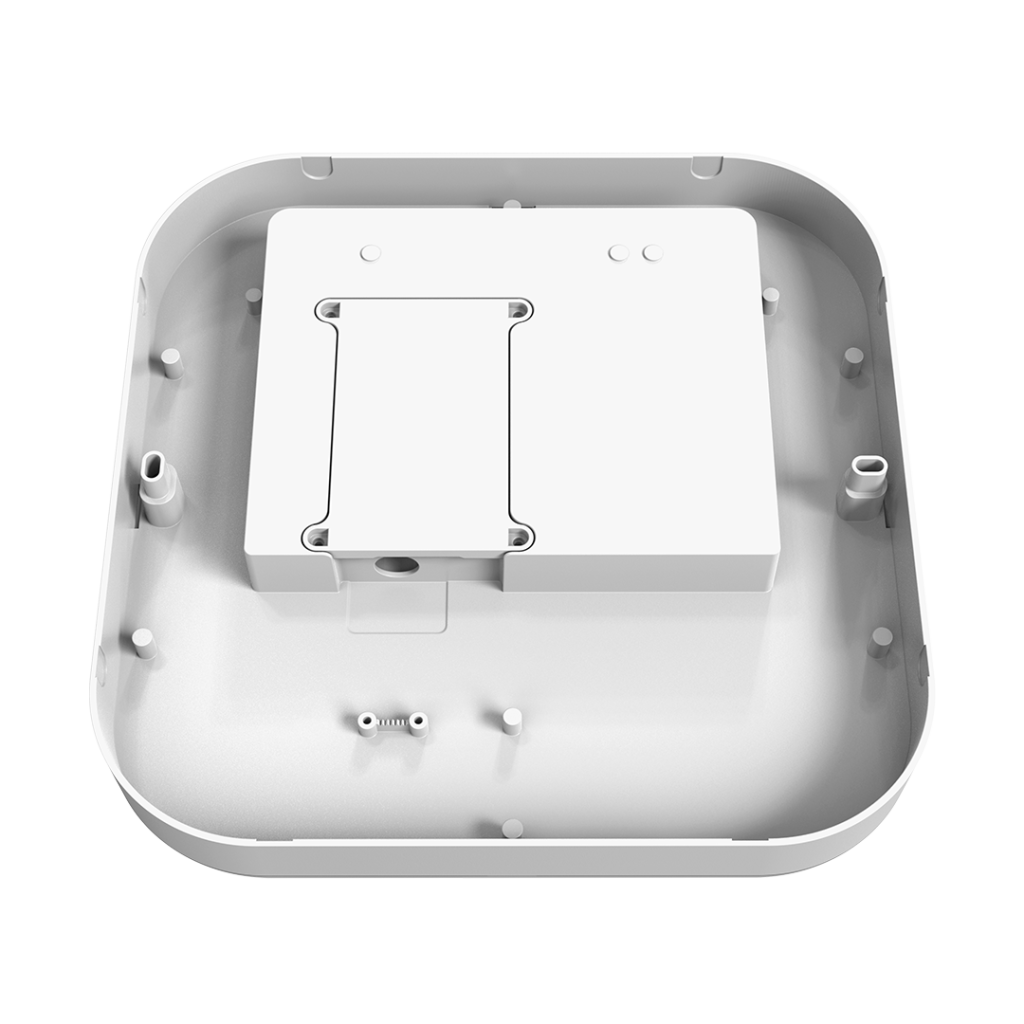

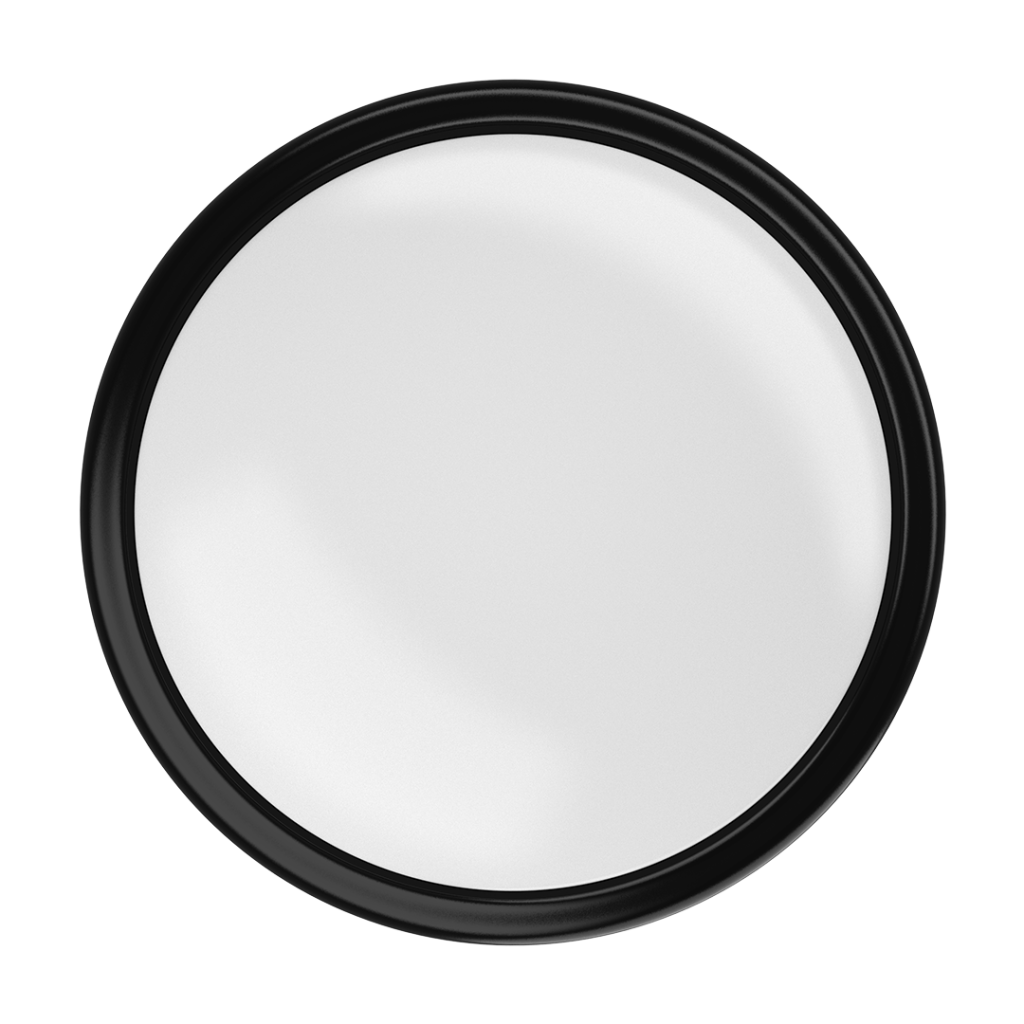

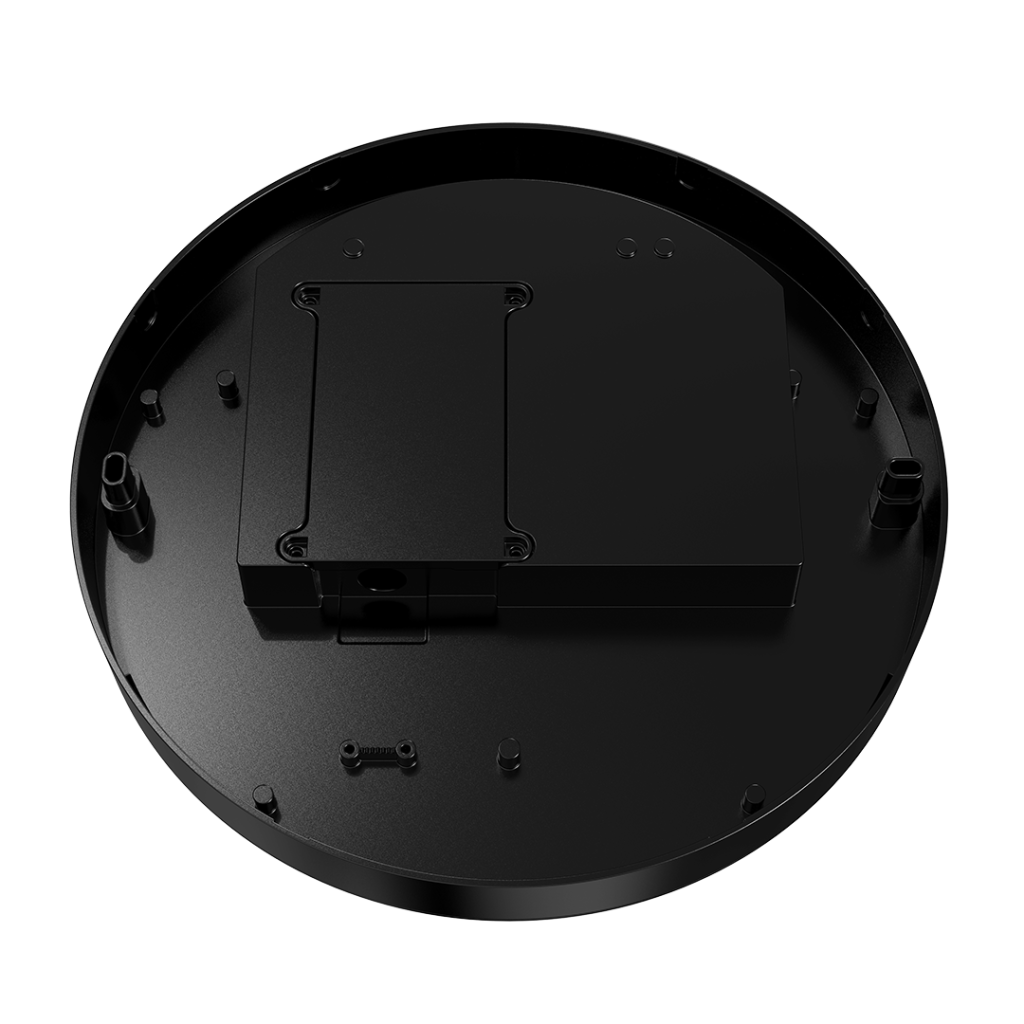

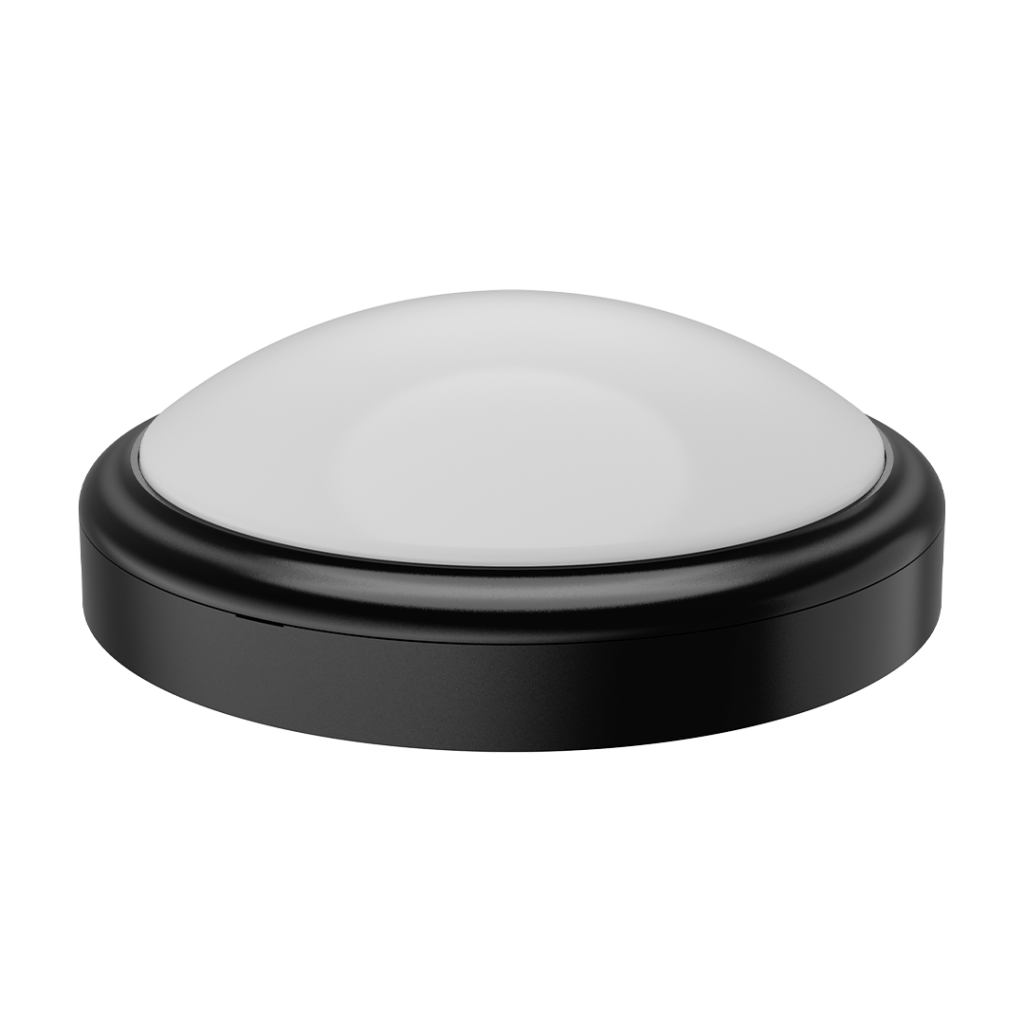

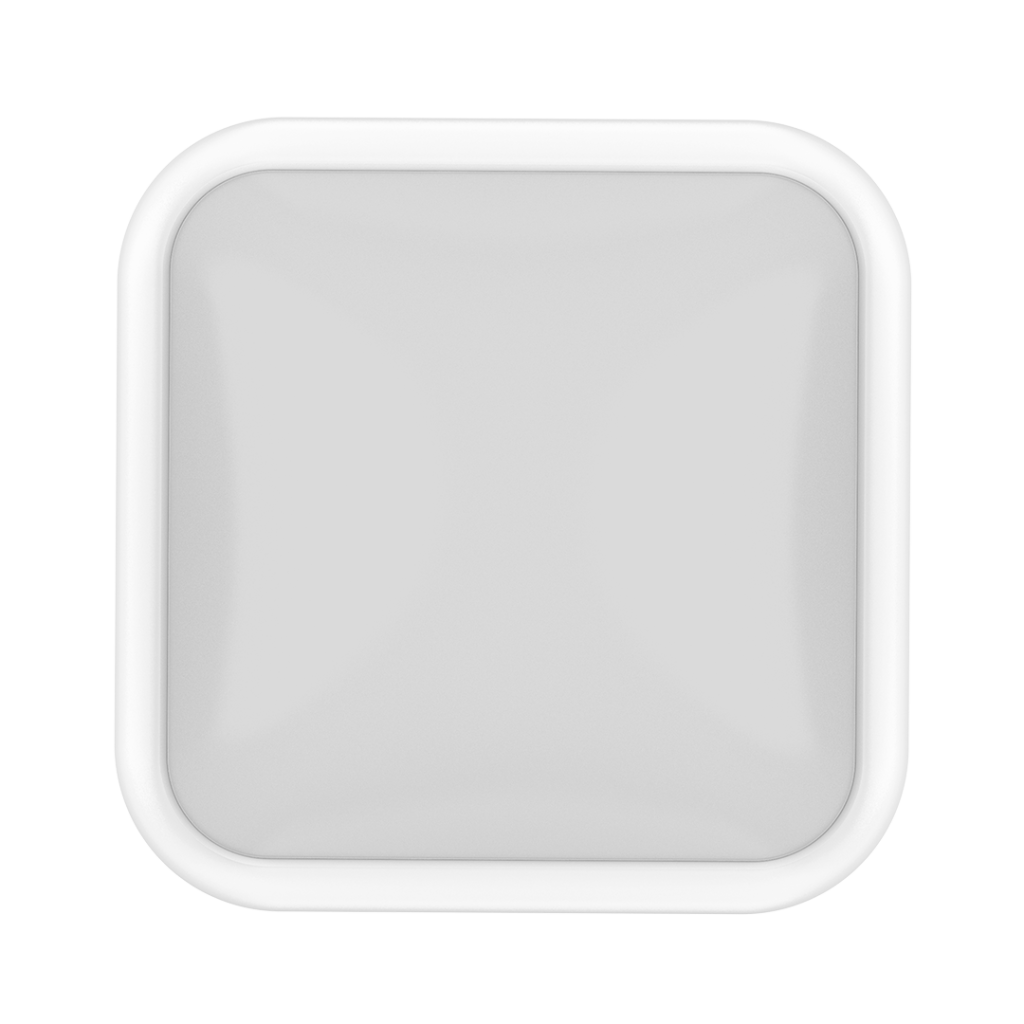

- Two shape options: Round (?240 × 79mm) or Square (240 × 240 × 79mm)
- Two colour finishes available: Matt White and Matt Black
- Durable polycarbonate construction: Impact-resistant housing and diffuser, both injection-moulded
- 35,000-hour lifespan: L70B50 rated for long-term reliability
- Fully certified: IEC60598-1&2 tested, compliant with CE / CB / RoHS / ErP
- 3-year warranty

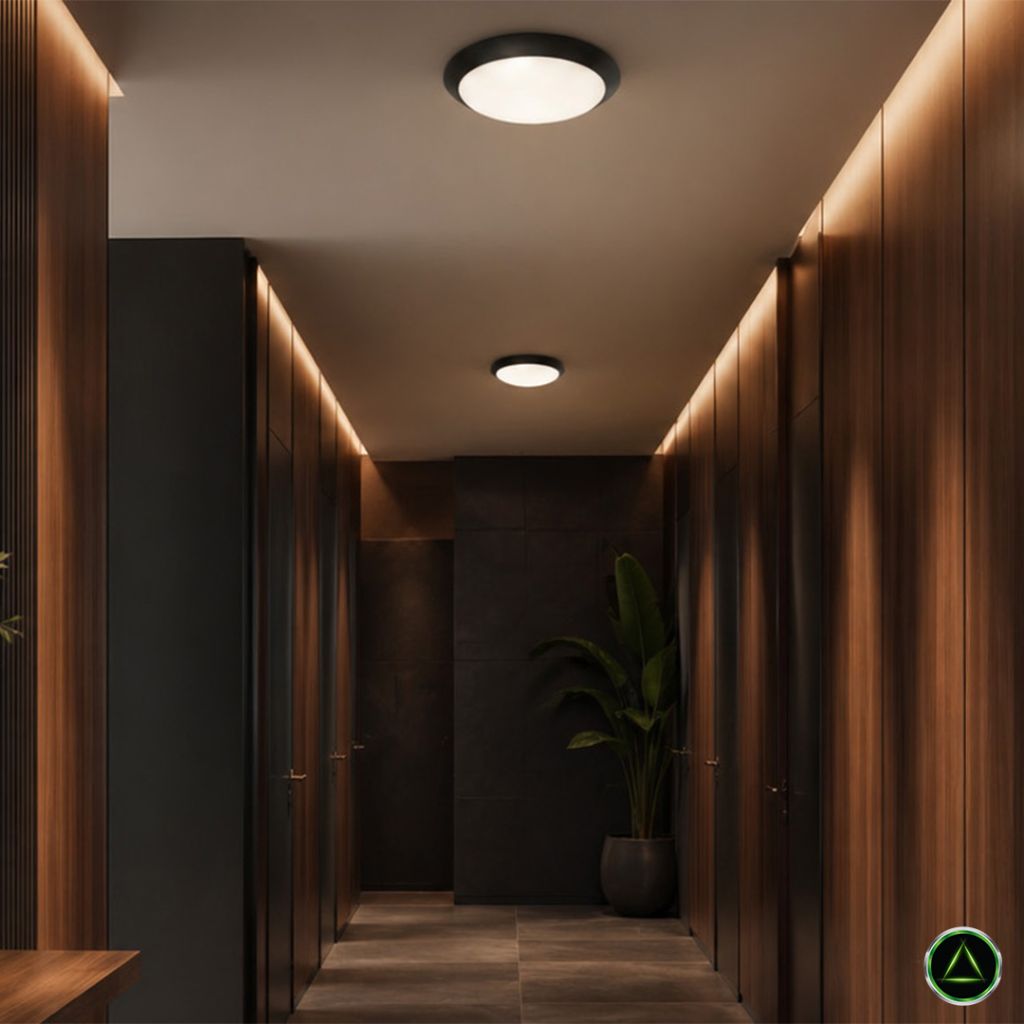

- Versatile applications: Hallways, stairwells, garages, basements, balconies, entrance walls, common areas, residential complexes, commercial buildings, and outdoor walkways
Additional information
| Wattage | 15W / 20W / 25W (dip switch) |
|---|---|
| Shape | Round, Square |
| Available Colors | Matt Black, Matt White |
| Colour Temperature (Kelvins) | 3000K / 4000K / 6500K (CCT dip switch) |
| Effective Lumen | 1500 / 2000 / 2500 lm |
| Colour Rendering Index | >80 |
| Beam Angle | 120° |
| Input Voltage | AC180~277VAC |
| Dimmable | No |
| Surge Protection | L-N: 1kV |
| Ingress Protection | IP65 |
| Impact Rating | IK08 |
| Operating Temperature | -20°C~45°C |
| Mounting Option | Surface Mount |
| Lifespan | 35,000 Hours |
| Warranty | 3 Years |
| Dimension | Round (?240 × 79mm), Square (240 × 240 × 79mm) |
