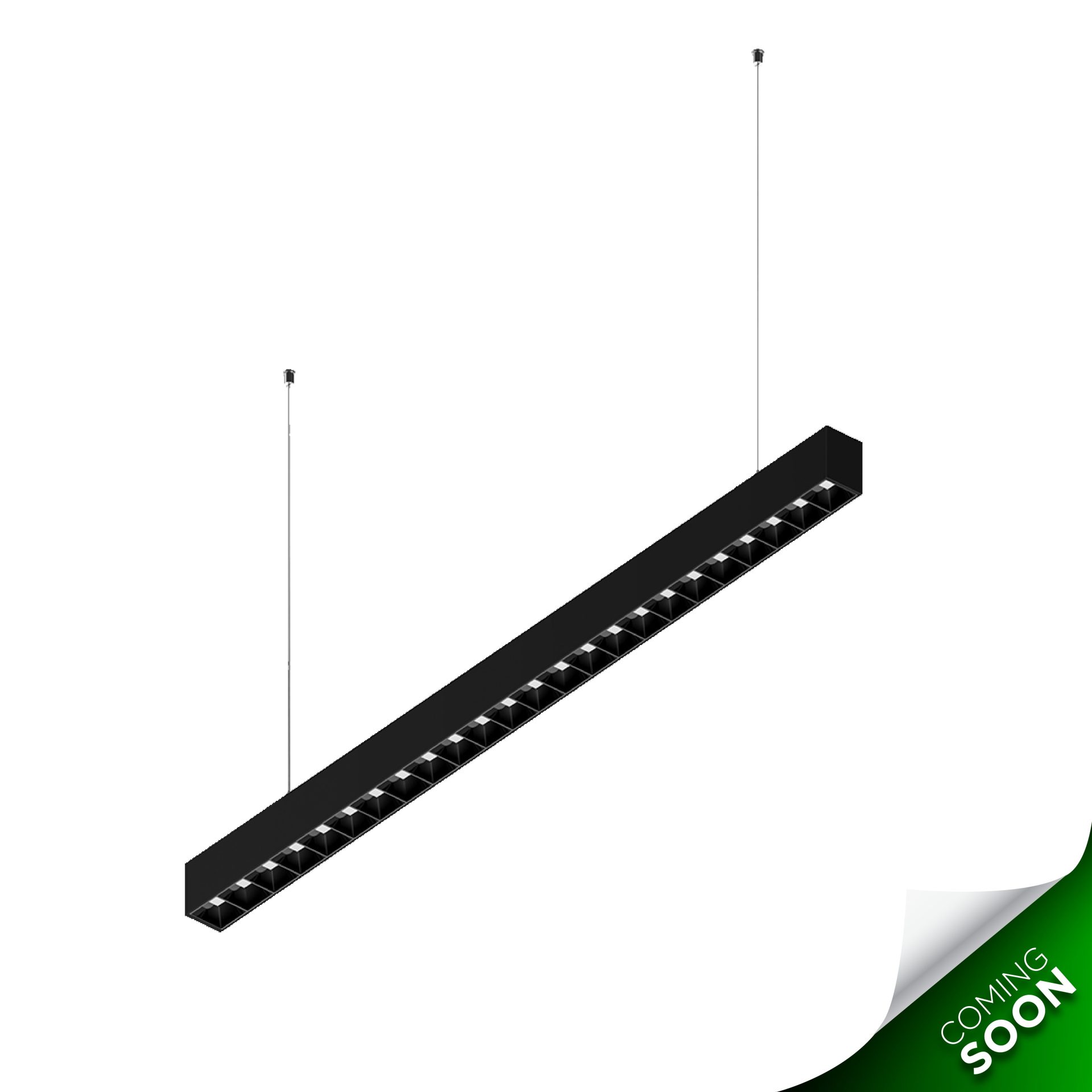

4FT 40W Nexus – LED Linear Light
The NEXUS 4FT 40W LED Linear Light from Mesmerize Lighting combines performance and flexibility with selectable wattage, CCT, and advanced anti-glare optics. Built to deliver consistent, flicker-free illumination with superior heat dissipation and long-lasting reliability.
Description
- 3CCT-in-1 selectable by DIP switch (3000K / 4000K / 6500K)
- 3Watts-in-1 selectable by DIP switch
- UGR<19 anti-glare grille reflector design
- Linkable <700W total: 4ft–40W – 17pcs
- Smalite SMD2835 LEDs, 120+ lm/W, CRI?84
- IES and Spectrum test reports available
- ADC12 aluminium housing (die-cast) with excellent heat dissipation
- MESMERIZE built-in isolated driver (170–264Vac, PF>0.9, EMC passed, flicker-free, surge protection L–N: 1.5kV)
- Optional: Triac / DALI dimmable driver and emergency battery backup
- Optional: Matte white or black housing and reflector
- Mounting options: Surface-mounted or suspended installation
- Rated lifespan: 50,000 hours
Additional information
| Wattage | 24W/32W/40W |
|---|---|
| Colour Temperature | 3000K / 4000K / 6500K, CCT 3-in-1 adjusted by dip-switch |
| Effective Lumen | 3600~4400lm(40W) |
| Colour Rendering Index | >80 |
| Beam Angle | 65° |
| Driver | Mesmerize Built-in Non-isolated Driver |
| Flicker Free | Flicker Free |
| Power Factor | 0.9PF |
| Surge Protection | L-N:1.5kV |
| Dimmable | No |
